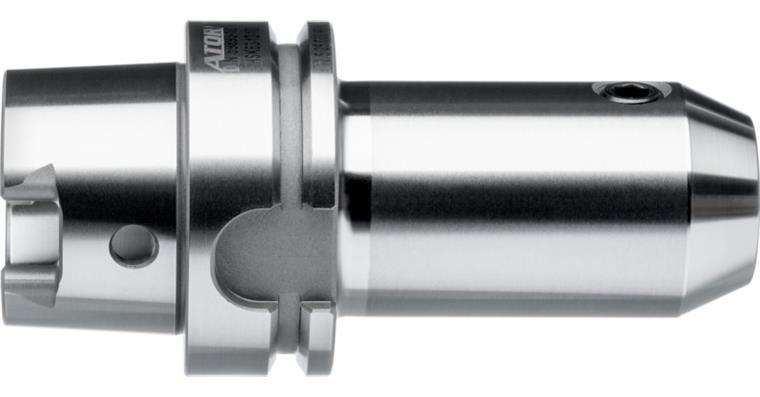

ATORN surface chuck (Weldon) HSK100 (ISO 12164) dia. 10 mm A=200 mm

ATORN surface chuck (Weldon) HSK100 (ISO 12164) dia. 10 mm A=200 mm

ATORN surface chuck (Weldon) HSK100 (ISO 12164) dia. 10 mm A=200 mm
Item no: 1021494 557

Online price:

Available in 8-10 working days.

Application
For clamping tools with a straight shank and clamping flat in accordance with DIN 1835 B.

Execution
  • Alloyed case-hardening steel with a core tensile strength of at least 950 N/mm²
  • Case-hardened HRc 60 ± 2 (HV 700 ± 50), hardness depth 0.8 mm ± 0.2 mm
  • Taper angle tolerance quality < AT3 in accordance with DIN 7187 and DIN 2080
  • All functional surfaces are machined
  • With Balluff chip hole

Delivery
1x surface chuck (Weldon) HSK 63 or HSK 100 (ISO 12164)

Notes
The previous standard DIN 69871 was superseded by ISO 12164.

Brand: ATORN
Tool holding device: HSK 100
Clamping diameter (d): 10 mm
Projecting length (A): 200 mm
Length (L): 171 mm
Outer diameter (D): 35 mm
Coolant supply: Internal axial
Balancing quality: G 2.5 at 25,000 rpm

ATORN-No.: 22660058

EAN no.: 4050293704730
