High-performance precision chuck Mimatic DIN 69871 A SK40 2.5-16 mm

High-performance precision chuck Mimatic DIN 69871 A SK40 2.5-16 mm

High-performance precision chuck Mimatic DIN 69871 A SK40 2.5-16 mm
Item no: 1021212 102

Online price:

Available in 5-7 working days.

Application
For drilling, reaming, milling, thread cutting.

Execution
Chuck and shank attached rigidly together. High clamping forces, type of clamping: Lateral with hexagon key. Max. permissible rotation speed 10,000 rpm. High concentricity less than 0.015 mm. High holding torque of 70-80 Nm. Extremely short design. High clamping forces thanks to worm gear!

Notes
All chucks come with operating instructions. Weighted short chuck with a rotation speed of up to 30,000 rpm deliverable on request.

Brand: MIMATIC
Tool holding device: SK 40
Min./max. clamping width: 2.5-16.0 mm
Projecting length (A): 80,0 mm
Outer diameter (D2): 52,0 mm
Form: A
Concentricity tolerance: 0,015 mm
Coolant supply: External
Balancing quality: G 6.3 at 12,000 rpm
DIN: 69871-1
Standard shank design: DIN 69871-1 A
Tightening thread: M16

Manufacturer part no.: 132394

Product Datasheet
Versions
loading
Keywords:

You might also be interested in this

  • Hinged door 2 piece cabinet width 1005mm useful height 700mm RAL 5012
  •
    Foil gauge strip in box 150x2500 mm unalloyed thickness 0.025 mm
  •
    ATORN SK40 surface chuck (ISO 7388-1), dia. 18 mm, A=100 mm
  •
    ATORN SK40 surface chuck (ISO 7388-1), dia. 20 mm, A=200 mm
  •
    ATORN HSK100 shrink-fit chuck (ISO 12164) dia. 6 mm A=160 mm
  •
    Hinged door 1 piece cabinet width 705mm useful height 900mm RAL 5010
  •
    ATORN SC miniature torus milling cutter long dia. 0.6x6.0x50 mm R0.1 Z2 RT65
  •

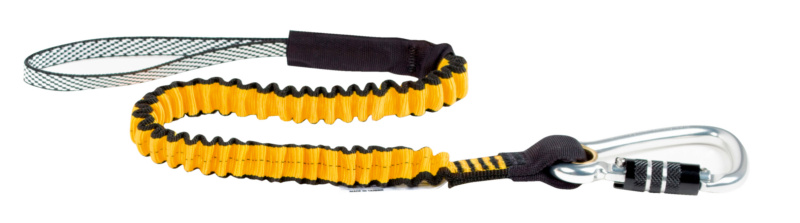

    Bungee tether Hook2Loop load capacity max. 15.9 kg length 78.7-132.1 cm
  •
