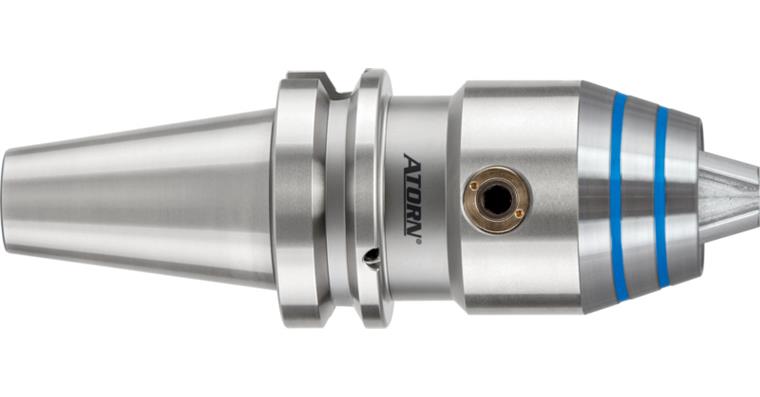

ATORN precision drill chuck BT40 (ISO 7388-2) 0.5-16 mm

ATORN precision drill chuck BT40 (ISO 7388-2) 0.5-16 mm

ATORN precision drill chuck BT40 (ISO 7388-2) 0.5-16 mm
Item no: 1021207 201

Online price:

Available in 5-7 working days.

Application
For use on machining centres and CNC machines with tool change systems. For drilling, reaming, countersinking and also light milling and finishing tasks.

Execution
Wear parts hardened and polished

Advantage
Remains securely clamped even if the spindle stops suddenly

Delivery
1x BT40 precision drill chuck (ISO 7388-2)

Notes
The previous standard JIS B 6339 MAS BT was superseded by ISO 7388-2.

Brand: ATORN
Tool holding device: BT 40
Min./max. clamping width (Spannweite min./max. C): 0.5-16 mm
Projecting length (A): 98 mm
Outer diameter (D): 57 mm
Coolant supply: Yes
Balancing quality: G 6,3 at 25000 rpm

ATORN-No.: 21045125

EAN no.: 4050293437072

Product Datasheet
