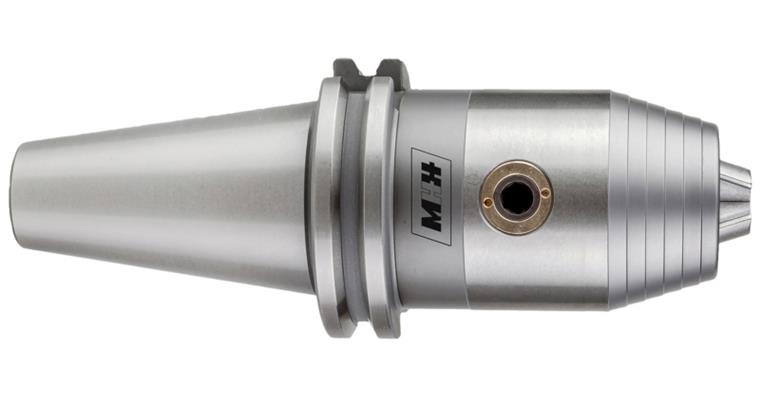

CNC precision drill chuck DIN 69871 A SK 40 clamping range 2.5-16 mm

CNC precision drill chuck DIN 69871 A SK 40 clamping range 2.5-16 mm

CNC precision drill chuck DIN 69871 A SK 40 clamping range 2.5-16 mm
Item no: 1021199 102

Online price:

Still in stock: 5

Application
Suitable for clockwise/anti-clockwise rotation.

Execution
  • Concentricity < 20 µm
  • High clamping force
  • Very short design
  • Max. rotation speed finely balanced 35,000 rpm

Delivery
With hexagon key with T-handle, SW 6 mm


Brand: HHW
Tool holding device: SK 40
Min./max. clamping width: 2.5-16.0 mm
Projecting length (A): 95,0 mm
Outer diameter (D2): 57,0 mm
Form: A
Concentricity tolerance: 0,02 mm
Coolant supply: External
Balancing quality: G 6,3 at 25000 rpm
DIN: 69871-1
Standard shank design: DIN 69871-1 A
Tightening thread: M16

EAN no.: 4024496055425

Product Datasheet
