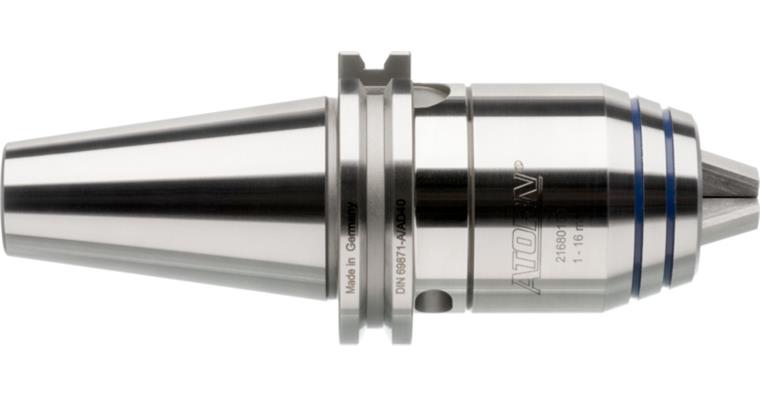

ATORN NC short drill chuck SK50 (ISO 7388-1) 1-16 mm shape AD, with IC

ATORN NC short drill chuck SK50 (ISO 7388-1) 1-16 mm shape AD, with IC

ATORN NC short drill chuck SK50 (ISO 7388-1) 1-16 mm shape AD, with IC
Item no: 1021191 102

Online price:

Available in 6-8 working days.

Application
For use on machining centres and CNC milling machines with tool change. For drilling, reaming, countersinking and also light milling and smoothing tasks.

Execution
Wear parts hardened and polished

Advantage
  • High concentricity
  • Remains securely clamped even if the spindle stops suddenly
  • Max. tightening torque 10 Nm, corresponds to 70 Nm retention torque

Delivery
1x SK40 or SK50 NC or short drill chuck (ISO 7388-1)

Notes
The previous standard DIN 69871-1 was replaced by ISO 7388-1.

Brand: ATORN
Tool holding device: SK 50
Min./max. clamping width: 1-16 mm
Projecting length (A): 80 mm
Outer diameter (D): 50 mm
Length 2 (L1 max.): 92 mm
Concentricity tolerance: 0,030 mm
Coolant supply: Internal
Balancing quality: G 40 at 7,000 rpm
DIN: 69871-1

ATORN-No.: 21680110

EAN no.: 4050293405934

Product Datasheet
