Brand: ATORN

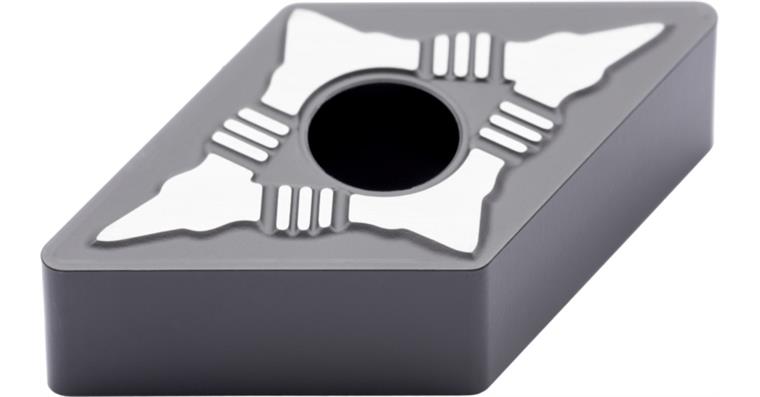

Shape of indexable insert ISO: D
Clearance angle of indexable insert ISO: N
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: G
Size of indexable insert ISO: 15
Thickness of indexable insert ISO: 06
Corner radius of indexable insert ISO: 08
Coating: CVD
Carbide type area ISO: P
Machining conditions for indexable insert: Medium
Carbide type ISO: P25
Carbide type: ACP25T
ISO-Code Rotating: DNMG 150608
Material to be processed: Steel | Stainless steel | Cast metal
min./max. ap: 1.0-6.0 mm
f min./max.: 0.2-0.45 mm/U
Materials group: M (secondary application) | K (secondary application) | P (primary application)
f min.: 0,2 mm/r
max. f: 0,45 mm/r
max. ap: 6,0 mm
min. ap: 1,0 mm
Supply type: Roughing - Stable edge at raised feed values
Chip breaker code: RP2
Min./max. Vc in steel: 100-240 m/min
Min./max. Vc in cast iron: 120-250 m/min
Min./max. Vc in stainless steel: 70-200 m/min
Number of pieces per packet: 10 PCS

ATORN-No.: 12370056

EAN no.: 4050293564693
