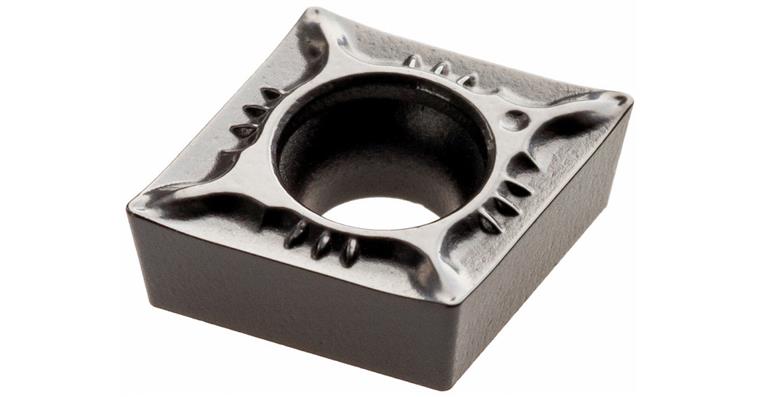

ATORN carbide indexable insert CCMT 060204-FP1 ACP15T

ATORN carbide indexable insert CCMT 060204-FP1 ACP15T

ATORN carbide indexable insert CCMT 060204-FP1 ACP15T
Item no: 1019401 101

Online price:

Available in 6-8 working days.

Advantage
  • Long service life
  • Optimised chip breaker for protection against ridge cracking and temperature influences
  • For excellent surface quality


Brand: ATORN
Shape of indexable insert ISO: C
Clearance angle of indexable insert ISO: C
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: T
Size of indexable insert ISO: 06
Thickness of indexable insert ISO: 02
Corner radius of indexable insert ISO: 04
Coating: CVD
Carbide type area ISO: P
Machining conditions for indexable insert: Good
Carbide type ISO: P15
Carbide type: ACP15T
ISO-Code Rotating: CCMT 060204
Material to be processed: Steel
min./max. ap: 0.1-2.5 mm
f min./max.: 0.07-0.25 mm/U
f min.: 0,07 mm/r
max. f: 0,25 mm/r
max. ap: 2,5 mm
min. ap: 0,1 mm
Supply type: Smoothing
Chip breaker code: FP1
Min./max. Vc in steel: 220-400 m/min
Min./max. Vc in cast iron: 140-370 m/min
Number of pieces per packet: 10 PCS

ATORN-No.: 12370731

EAN no.: 4050293728866
