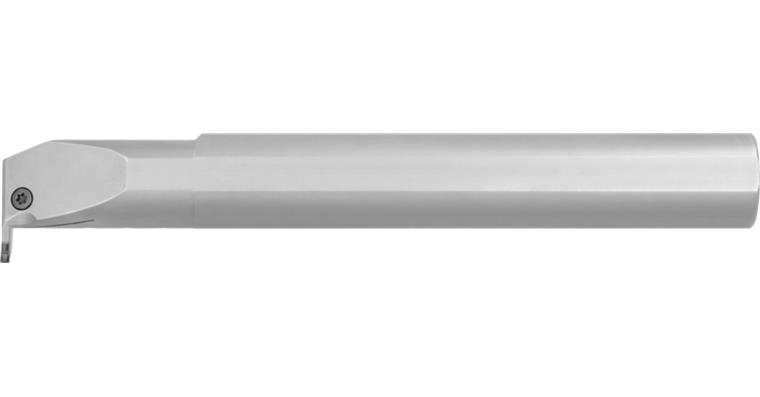

ATORN boring bar AMIL-25-AD2403-T09-C

ATORN boring bar AMIL-25-AD2403-T09-C

ATORN boring bar AMIL-25-AD2403-T09-C
Item no: 1018753 202

Online price:

Available in 6-8 working days.

Application
For recessing and copy turning, internal

Execution
Precision-manufactured steel support, nickel-plated and hardened with clamping element


Brand: ATORN
Suitable for knife width (W): 3 mm
Shank diameter (D): 25 mm
Programming size: 9 mm
Plunge depth (T): 9 mm
Length (L1): 200 mm
Immersion depth: 9 mm
Clamping surface height (H): 24,5 mm
Adjustment rate via centre (f): 22 mm
Min. bore diameter: 31,1 mm
Tool design: Left

ATORN-No.: 12371017

EAN no.: 4050293740417

Product Datasheet
