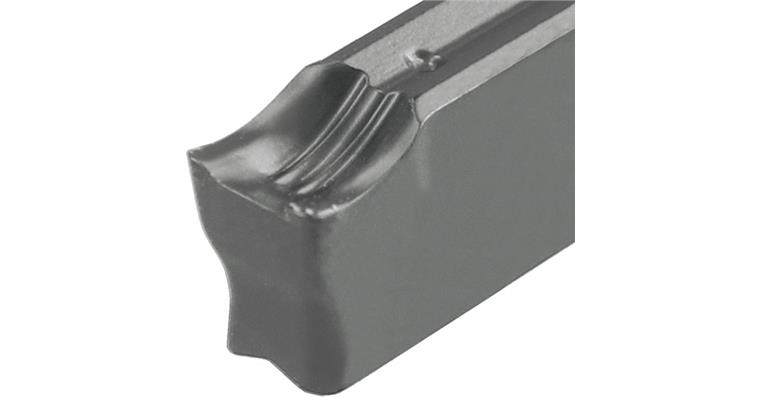

ATORN indexable cutting insert Z2 AD 3.00-0.2 L6-F APU40G

ATORN indexable cutting insert Z2 AD 3.00-0.2 L6-F APU40G

ATORN indexable cutting insert Z2 AD 3.00-0.2 L6-F APU40G
Item no: 1018706 205

Online price:

Still in stock: 9

Application
For radial grooving and cutting with very positive and soft-cutting chip geometry.

Execution
Precision-sintered cutting insert, F geometry with extremely positive cutting edge

Advantage
  • Very low cutting forces and good chip control even at low feed rates.
  • Very good cutting performance in materials with low strength.
  • First choice for thin-walled components.


Brand: ATORN
f min./max.: 0.05-0.15 mm/U
Recessing width (W): 3 mm
Radius (R): 0,2 mm
Tool design: Left
Surface: Coated
Carbide type: APU40G
Material to be processed: Cast metal | Special alloy | Steel | Stainless steel
Min./max. Vc in steel: 50-240 m/min
Min./max. Vc in stainless steel: 50-200 m/min
Min./max. Vc in cast iron: 80-200 m/min

ATORN-No.: 12370281

EAN no.: 4050293700633

Product Datasheet
