ATORN indexable insert TNMG 160404-RM1 APM20T-1

ATORN indexable insert TNMG 160404-RM1 APM20T-1

ATORN indexable insert TNMG 160404-RM1 APM20T-1
Item no: 1018598 215

Online price:

Available for immediate delivery

Notes

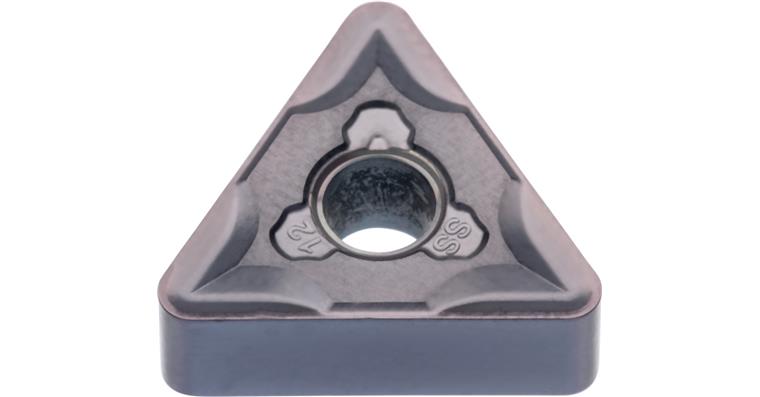

Indexable insert TNMG 160404-RM1 APM20T-1

Brand: ATORN
Shape of indexable insert ISO: T
Clearance angle of indexable insert ISO: N
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: G
Size of indexable insert ISO: 16
Thickness of indexable insert ISO: 04
Corner radius of indexable insert ISO: 04
Carbide type area ISO: M
Machining conditions for indexable insert: Good
Carbide type ISO: M20
Carbide type: APM20T-1
ISO-Code Rotating: TNMG 160404
min./max. ap: 0.5-4 mm
f min./max.: 0.1-0.6 mm/U
f min.: 0,1 mm/r
max. f: 0,6 mm/r
max. ap: 4 mm
min. ap: 0,5 mm
Chip breaker code: RM1
Min./max. Vc in stainless steel: 90-220 m/min
Min./max. Vc in special alloys: 20-150 m/min

ATORN-No.: 12350634

EAN no.: 4066107027537

Product Datasheet Datasheet cutting values
