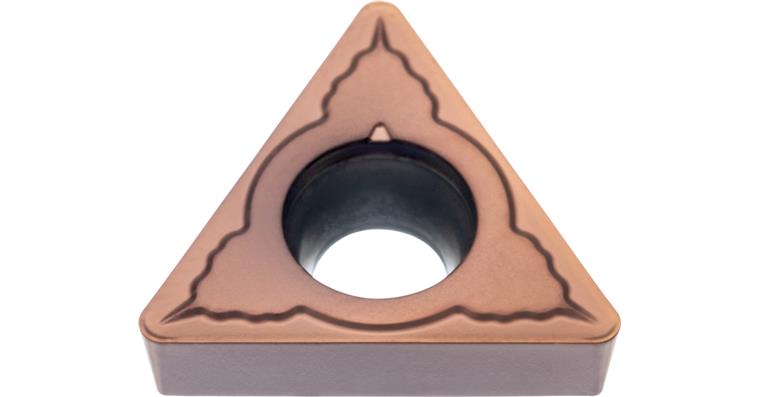

ATORN indexable insert TCMT 16T312-MM2 APM20T-1

ATORN indexable insert TCMT 16T312-MM2 APM20T-1

ATORN indexable insert TCMT 16T312-MM2 APM20T-1
Item no: 1018594 806

Online price:

Available in 6-8 working days.

Notes
Indexable insert TCMT 090204-MM2 APM20T-1

Brand: ATORN
Shape of indexable insert ISO: T
Clearance angle of indexable insert ISO: C
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: T
Size of indexable insert ISO: 16
Thickness of indexable insert ISO: T3
Corner radius of indexable insert ISO: 12
Carbide type area ISO: M
Machining conditions for indexable insert: Good
Carbide type ISO: M20
Carbide type: APM20T-1
ISO-Code Rotating: TCMT 16T312
min./max. ap: 0.6-3 mm
f min./max.: 0.06-0.6 mm/U
f min.: 0,06 mm/r
max. f: 0,6 mm/r
max. ap: 3 mm
min. ap: 0,6 mm
Chip breaker code: MM2
Min./max. Vc in stainless steel: 90-240 m/min
Min./max. Vc in special alloys: 20-160 m/min

ATORN-No.: 12350532

EAN no.: 4066107026516

Product Datasheet Datasheet cutting values
