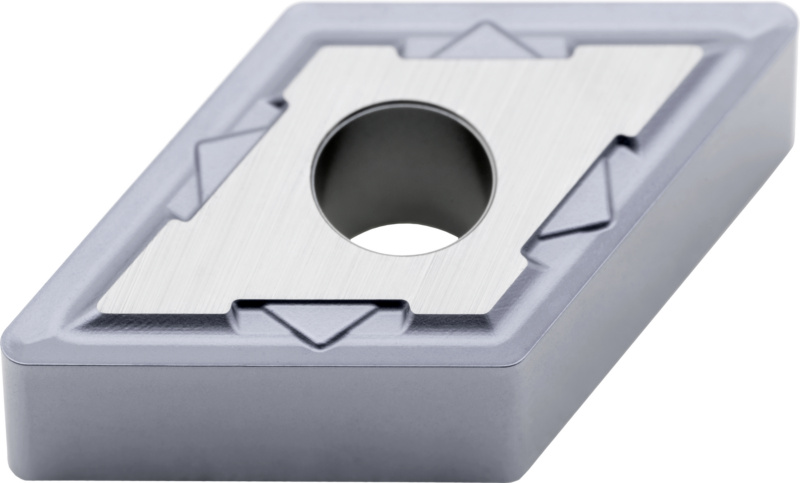

ATORN indexable insert DCMT 11T304-FP1 ACP15T-1

ATORN indexable insert DCMT 11T304-FP1 ACP15T-1

ATORN indexable insert DCMT 11T304-FP1 ACP15T-1
Item no: 1018581 108

Online price:

Available in 6-8 working days.

Advantage
  • very high level of hardness and wear resistance, for high service life requirements with favourable cutting conditions
  • very positive chip breaker, ensures ideal chip breaking with small cutting depths


Brand: ATORN
Shape of indexable insert ISO: D
Clearance angle of indexable insert ISO: C
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: T
Size of indexable insert ISO: 11
Thickness of indexable insert ISO: T3
Corner radius of indexable insert ISO: 04
Coating: CVD
Carbide type area ISO: P | K
Machining conditions for indexable insert: Good
Carbide type ISO: P15 | K15 | K05 | P05
Carbide type: ACP15T-1
ISO-Code Rotating: DCMT 11T304
Material to be processed: Cast iron | Steel
min./max. ap: 0.11-2.0 mm
f min./max.: 0.06-0.23 mm/U
Materials group: P (primary application) | K (secondary application)
f min.: 0,06 mm/r
max. f: 0,23 mm/r
max. ap: 2,0 mm
min. ap: 0,11 mm
Supply type: Smoothing - Positive chip breaker for low cutting depths
Chip breaker code: FP1
Min./max. Vc in steel: 125-400 m/min
Min./max. Vc in cast iron: 150-395 m/min

ATORN-No.: 12350768

EAN no.: 4066107043841

Product Datasheet
