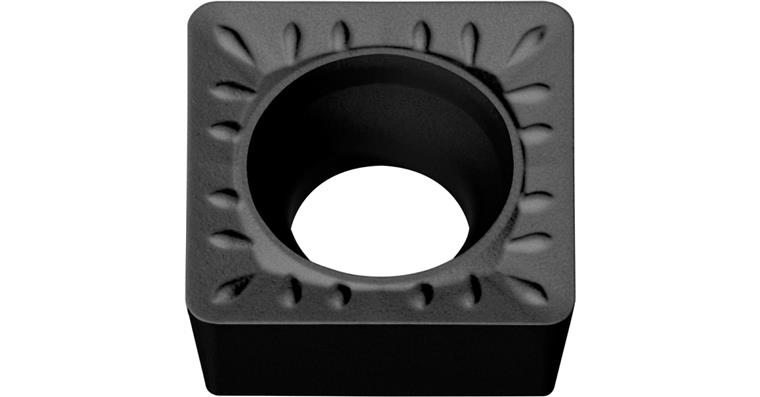

ATORN indexable insert SCMT 120408 medium machining MM HC7820

ATORN indexable insert SCMT 120408 medium machining MM HC7820

ATORN indexable insert SCMT 120408 medium machining MM HC7820
Item no: 1018578 260

Online price:

Available in 4-6 working days.

Advantage
  • perfect combination of toughness and resistance to wear, for high degree of process stability and broad range of applications
  • Positive soft-cutting chip geometry with a wide infeed range and stable blades


Brand: ATORN
Shape of indexable insert ISO: S
Clearance angle of indexable insert ISO: C
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: T
Size of indexable insert ISO: 12
Thickness of indexable insert ISO: 04
Corner radius of indexable insert ISO: 08
Coating: PVD
Carbide type area ISO: M | S | P
Machining conditions for indexable insert: Medium
Carbide type ISO: M30 | S10 | S30 | P15 | P25 | M10
Carbide type: HC7820
ISO-Code Rotating: SCMT 120408
Material to be processed: Stainless steel | Special alloy | Steel
min./max. ap: 0.6-5.0 mm
f min./max.: 0.16-0.40 mm/U
Materials group: P (primary application) | S (primary application) | M (primary application)
f min.: 0,16 mm/r
max. f: 0,40 mm/r
max. ap: 5,0 mm
min. ap: 0,6 mm
Supply type: Medium processing - Universal geometry with wide service range
Chip breaker code: MM
Min./max. Vc in steel: 40-110 m/min
Min./max. Vc in stainless steel: 80-190 m/min
Min./max. Vc in special alloys: 40-60 m/min

ATORN-No.: 10875212

EAN no.: 4066107006150

Product Datasheet
