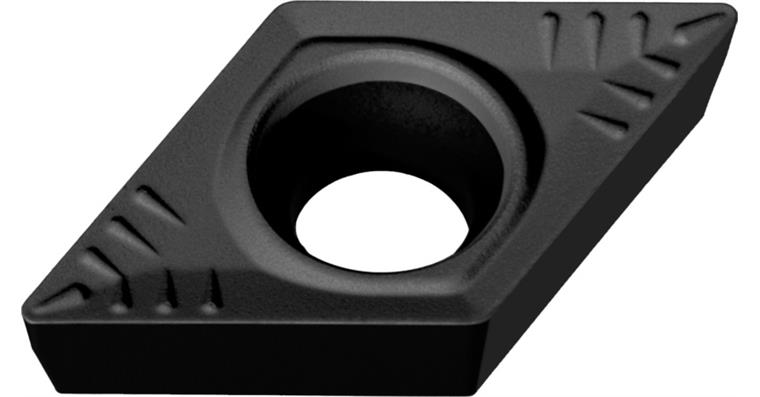

ATORN indexable insert DCMT 70208 medium machining MM HC7820

ATORN indexable insert DCMT 70208 medium machining MM HC7820

ATORN indexable insert DCMT 70208 medium machining MM HC7820
Item no: 1018561 215

Online price:

Available in 4-6 working days.

Advantage
  • perfect combination of toughness and resistance to wear, for high degree of process stability and broad range of applications
  • Positive soft-cutting chip geometry with a wide infeed range and stable blades


Brand: ATORN
Shape of indexable insert ISO: D
Clearance angle of indexable insert ISO: C
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: T
Size of indexable insert ISO: 07
Thickness of indexable insert ISO: 02
Corner radius of indexable insert ISO: 08
Coating: PVD
Carbide type area ISO: P | M | S
Machining conditions for indexable insert: Medium
Carbide type ISO: S10 | P25 | M30 | S30 | P15 | M10
Carbide type: HC7820
ISO-Code Rotating: DCMT 070208
Material to be processed: Special alloy | Stainless steel | Steel
min./max. ap: 0.1-1.5 mm
f min./max.: 0.05-0.16 mm/U
Materials group: S (primary application) | M (primary application) | P (primary application)
f min.: 0,05 mm/r
max. f: 0,16 mm/r
max. ap: 1,5 mm
min. ap: 0,1 mm
Supply type: Medium processing - Universal geometry with wide service range
Chip breaker code: MM
Min./max. Vc in steel: 50-130 m/min
Min./max. Vc in stainless steel: 100-210 m/min
Min./max. Vc in special alloys: 40-60 m/min

ATORN-No.: 10875193

EAN no.: 4066107005962

Product Datasheet
