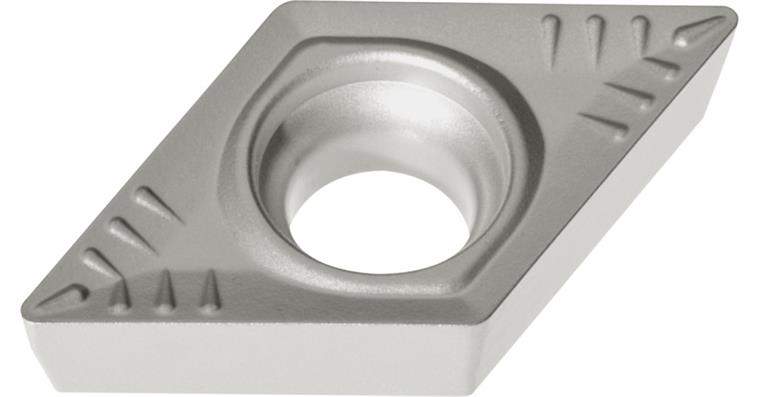

ATORN indexable insert, positive, DCMT 11T304-MP HC7530

ATORN indexable insert, positive, DCMT 11T304-MP HC7530

ATORN indexable insert, positive, DCMT 11T304-MP HC7530
Item no: 1018560 612

Online price:

Only while stocks last: 8
Replacement article

Application
For longitudinal turning and copy turning with a wide infeed range in unfavourable cutting conditions

Execution
sintered cemented carbide indexable insert

Advantage
  • Very tough type with low risk of breakage in unfavourable cutting conditions
  • Positive soft-cutting chip geometry with a wide infeed range and stable blades


Brand: ATORN
Shape of indexable insert ISO: D
Clearance angle of indexable insert ISO: C
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: T
Size of indexable insert ISO: 11
Thickness of indexable insert ISO: T3
Corner radius of indexable insert ISO: 04
Coating: CVD
Carbide type area ISO: M
Machining conditions for indexable insert: Unfavourable
Carbide type ISO: M30
Carbide type: HC7530
ISO-Code Rotating: DCMT 11T304
Material to be processed: Stainless steel | Special alloy
min./max. ap: 0.4-2.0 mm
f min./max.: 0.16-0.25 mm/U
Materials group: M (primary application) | S (secondary application)
f min.: 0,16 mm/r
max. f: 0,25 mm/r
max. ap: 2,0 mm
min. ap: 0,4 mm
Supply type: Medium processing - Universal geometry with wide service range
Chip breaker code: MPX
Min./max. Vc in stainless steel: 90-160 m/min
Min./max. Vc in special alloys: 20-50 m/min
Number of pieces per packet: 10 PCS

ATORN-No.: 10870429

EAN no.: 4050293080827

Product Datasheet
