ATORN cemented carbide indexable insert CCMT060204-FM HC7820

ATORN cemented carbide indexable insert CCMT060204-FM HC7820

ATORN cemented carbide indexable insert CCMT060204-FM HC7820
Item no: 1018553 211

Online price:

Available for immediate delivery

Advantage
  • perfect combination of toughness and resistance to wear, for high degree of process stability and broad range of applications
  • very positive chip breaker, ensures ideal chip breaking with small cutting depths


Brand: ATORN
Shape of indexable insert ISO: C
Clearance angle of indexable insert ISO: C
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: T
Size of indexable insert ISO: 06
Thickness of indexable insert ISO: 02
Corner radius of indexable insert ISO: 04
Coating: PVD
Carbide type area ISO: M | S | P
Machining conditions for indexable insert: Medium
Carbide type ISO: M10 | M30 | S10 | S30 | P15 | P25
Carbide type: HC7820
ISO-Code Rotating: CCMT 060204
min./max. ap: 0.1-1.5 mm
f min./max.: 0.05-0.16 mm/U
f min.: 0,05 mm/r
max. f: 0,16 mm/r
max. ap: 1,5 mm
min. ap: 0,1 mm
Supply type: Smoothing - Positive chip breaker for low cutting depths
Chip breaker code: FM
Min./max. Vc in steel: 50-130 m/min
Min./max. Vc in stainless steel: 90-210 m/min
Min./max. Vc in special alloys: 40-60 m/min
Number of pieces per packet: 10 PCS

ATORN-No.: 10875144

EAN no.: 4050293561593

Product Datasheet
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN twist drill N HSS, steam-treated, DIN 338, 3.0 mm x 61 mm x 33 mm, 118°
    1,80 €
  • Messständer mit Gelenkarm
  •
    Hard stone precision meas. table w rigid transverse arm meas. height 225 mm
  •
    Hard stone precision meas. table w. adjustable transv. arm meas. height 225 mm
  •

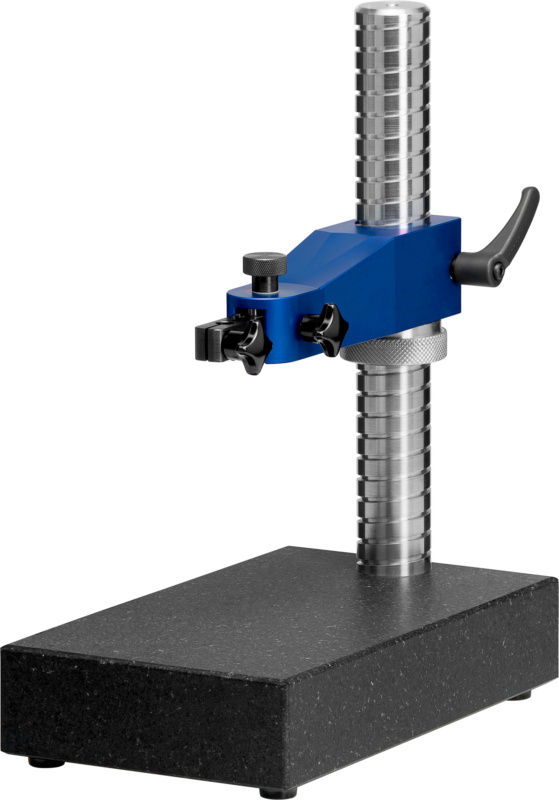

    ATORN measuring table, rigid transv arm 250x200 mm, quick thrd, fine adjustment
  •

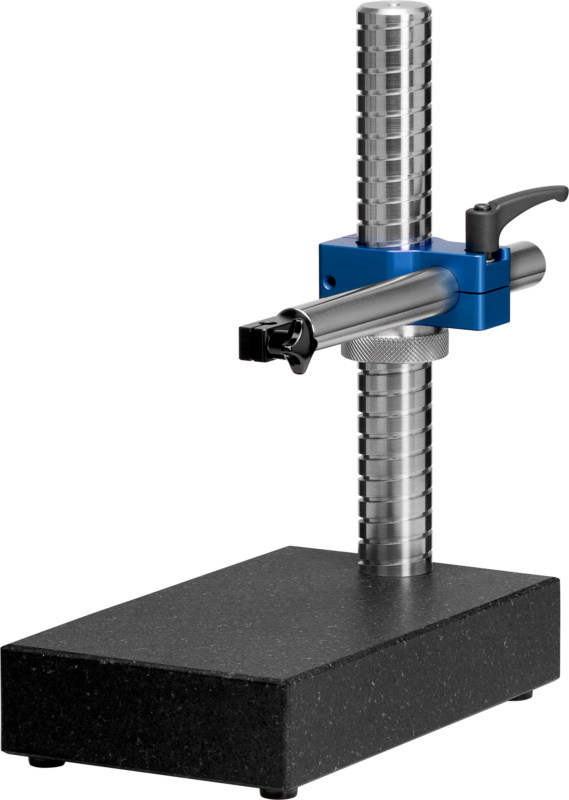

    ATORN measuring table with movable transverse arm 250x200 mm
  •
