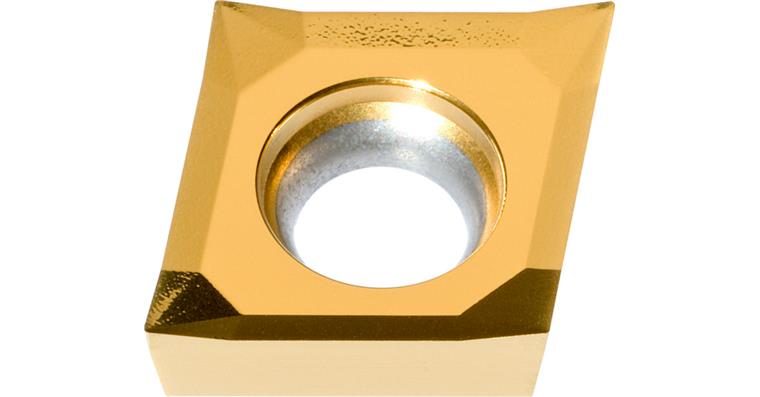

ATORN indexable insert, positive, CCGT 120408-MN HC6310

ATORN indexable insert, positive, CCGT 120408-MN HC6310

ATORN indexable insert, positive, CCGT 120408-MN HC6310
Item no: 1018550 408

Online price:

Only while stocks last

Application
For longitudinal turning and facing with a wide infeed range in favourable cutting conditions

Execution
Ground cemented carbide indexable insert

Advantage
  • Very high level of hardness and wear resistance, for high service life requirements with favourable cutting conditions
  • Positive soft-cutting chip geometry with a wide infeed range and stable blades
  • Extremely sharply ground cutters for ideal cutting properties and surface qualities


Brand: ATORN
Shape of indexable insert ISO: C
Clearance angle of indexable insert ISO: C
Tolerance class of indexable insert ISO: G
Indexable insert type ISO: T
Size of indexable insert ISO: 12
Thickness of indexable insert ISO: 04
Corner radius of indexable insert ISO: 08
Coating: PVD
Carbide type area ISO: N
Machining conditions for indexable insert: Good
Carbide type ISO: N10
Carbide type: HC6310
ISO-Code Rotating: CCGT 120408
Material to be processed: Non-ferrous metal
min./max. ap: 0.5-5 mm
f min./max.: 0.08-0.2 mm/U
Materials group: M (secondary application) | N (primary application)
f min.: 0,08 mm/r
max. f: 0,2 mm/r
max. ap: 5 mm
min. ap: 0,5 mm
Supply type: Medium processing - Universal geometry with wide service range
Chip breaker code: MN
Min./max. Vc in stainless steel: 120-200 m/min
Min./max. Vc in non-ferrous metals: 160-1000 m/min
Number of pieces per packet: 10 PCS

ATORN-No.: 10870297

EAN no.: 4050293079876

Product Datasheet
