Brand: DORMER PRAMET
Material to be processed: Steel | Stainless steel | Cast metal | Non-ferrous metal | Special alloy | Hardened steel

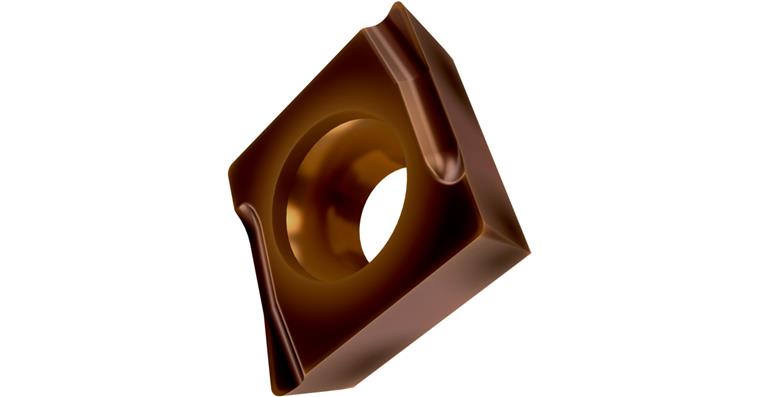

ISO-Code Rotating: CCGT 09T304
Supply type: Medium finishing | Smoothing
Surface: Coated
Cutting material: SC
Inner circle diameter (IC): 4,4 mm
Knife edge length (L): 9 mm
Mounting bore diameter (D1): 4,4 mm
Corner radius (RE): 0,4 mm
Thickness of indexable insert (S): 3,97 mm
Carbide type: T8430
Chip breaker code: EL-SI
Coating: PVD
Materials group: P (primary application) | M (primary application) | K (secondary application) | N (secondary application) | S (secondary application) | H (secondary application)
Carbide type ISO: M20 | M35 | K25 | K40 | N15 | N25 | S15 | S25 | H15 | H20 | P20 | P40
Machining conditions for indexable insert: Medium
Min./max. Vc in steel: 230-260 m/min
Min./max. Vc in stainless steel: 125-140 m/min
Min./max. Vc in cast iron: 185-215 m/min
Min./max. Vc in special alloys: 45-55 m/min
min./max. ap: 0.8-1.0 mm
f min./max.: 0.1-0.24 mm/U
Number of pieces per packet: 10 PCS

Manufacturer part no.: 7973794

EAN no.: 3603603814042
