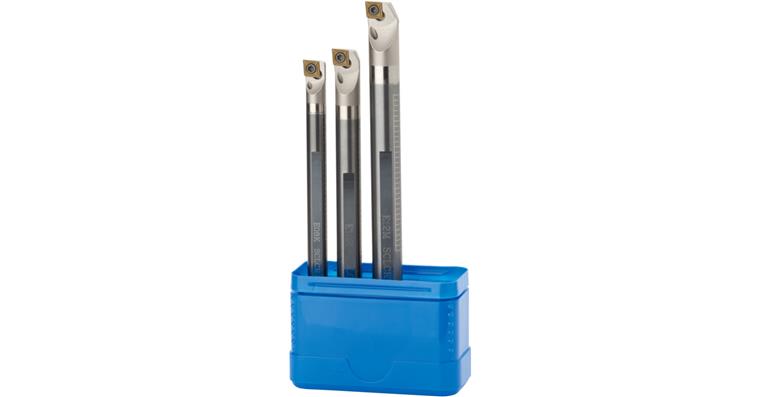

ATORN SCLC boring bar set, solid carbide, positive, left, SCLC L06

ATORN SCLC boring bar set, solid carbide, positive, left, SCLC L06

ATORN SCLC boring bar set, solid carbide, positive, left, SCLC L06
Item no: 1018482 402

Online price:

Available in 4-6 working days.

Application
For copy turning and longitudinal turning using CC indexable insert 80°.

Execution
precision-manufactured solid carbide boring bar, with inner cooling, C type, 95° pitch angle, 80° tip angle, 7° clearance angle

Advantage
  • universal use for facing and longitudinal turning
  • positive body geometry ensures low cutting forces
  • very high level of rigidity and good cutting quality thanks to solid carbide supporting material


Brand: ATORN
ISO name: SCLC L06
Material: VHM
Composition of set: 1 piece each E08K, E10K, E12M
Number of pieces in assortment/set: 3 PCS
Suitable for indexable inserts: CC.. 0602..
Machining direction: Left
DIN: 8024

ATORN-No.: 11111007

EAN no.: 4050293110227

Product Datasheet
