ATORN insert holder MVJN, negative, right, MVJN R/L 2020 K16

ATORN insert holder MVJN, negative, right, MVJN R/L 2020 K16

ATORN insert holder MVJN, negative, right, MVJN R/L 2020 K16
Item no: 1018464 500

Online price:

Available in 6-8 working days.

Application

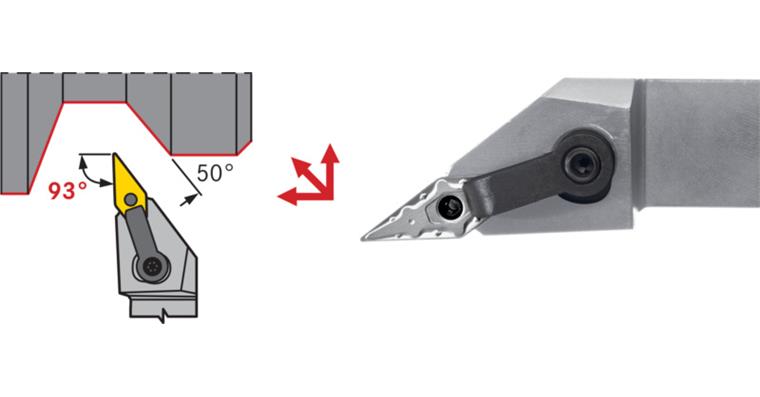

For copy and longitudinal turning with VN indexable insert, 35°.

Execution
Precision-manufactured steel support, burnished, hardened, adjustable clamping system, type V, working angle 93°, tip angle 35°, clearance angle 0°

Advantage
  • Very streamlined geometry, optimised for contour lathe work with large feed depths and unfavourable conditions
  • Negative geometry of the body ensures good stability and force absorption at large cutting depths
  • Broad range of use: suitable for both finishing and roughing operations
  • Adjustable clamp minimises vibrations and ensures good force transfer


Brand: ATORN
ISO name: MVJN R/L 2020 K16
Shaft height (h=h1): 20 mm
Shank width (b): 20 mm
Length (l1): 125 mm
Programming size (f): 25 mm
Length of head (l2): 37 mm
Suitable for indexable inserts (ISO): VN.. 1604..
Tool design: Right
DIN: 4983

ATORN-No.: 11220111

EAN no.: 4050293127744

Product Datasheet
