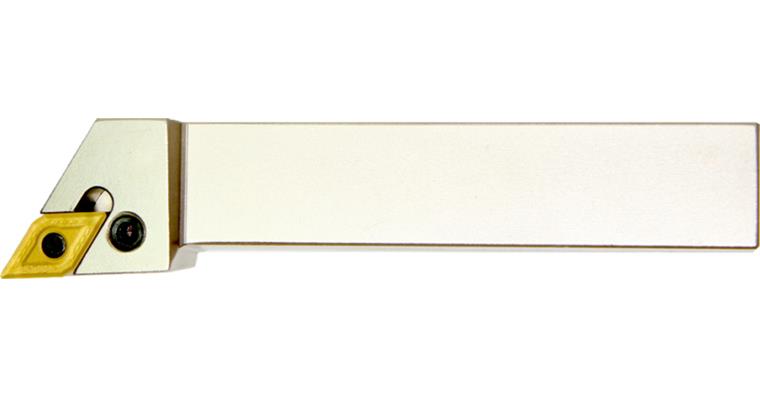

Ins. holder PDJNR 1616 H11 right

Ins. holder PDJNR 1616 H11 right

Ins. holder PDJNR 1616 H11 right
Item no: 1018453 298

Online price:

Available in 8-10 working days.

Application
For indexable inserts DN.. 1104..
For indexable inserts with centre bore.
Mounting with clamping lever (clamp holder system P).

Execution
  • Right
  • Approach angle 93°

Notes
Spare parts:
Art. no. 1018470 733 Clamping screw
Art. no. 1052529 405 TX® screwdriver
Art. no. 1018471 737 Support plate
Art. no. 1018474 725 Sleeve
Art. no. 1018475 725 Clamping lever

Brand: HHW
Shaft height (h=h1): 16 mm
Shank width (b): 16 mm
Length (l1): 100 mm
Length of head (l2): 25 mm
Suitable for indexable inserts (ISO): DN.. 1104..
Tool design: Right
Clearance angle: 0 Degree
Cutting edge length: 11 mm
DIN: 4983
Direction of clearance angle: Negative
Grip system: P
Setting angle: 93 Degree
Shape of indexable insert ISO: D

EAN no.: 4024496047635
