ATORN insert holder PCBN, negative, right, PCBN R/L 2525 M16

ATORN insert holder PCBN, negative, right, PCBN R/L 2525 M16

ATORN insert holder PCBN, negative, right, PCBN R/L 2525 M16
Item no: 1018441 502

Online price:

Available in 6-8 working days.

Application
For longitudinal turning using CN indexable insert 80°.

Execution

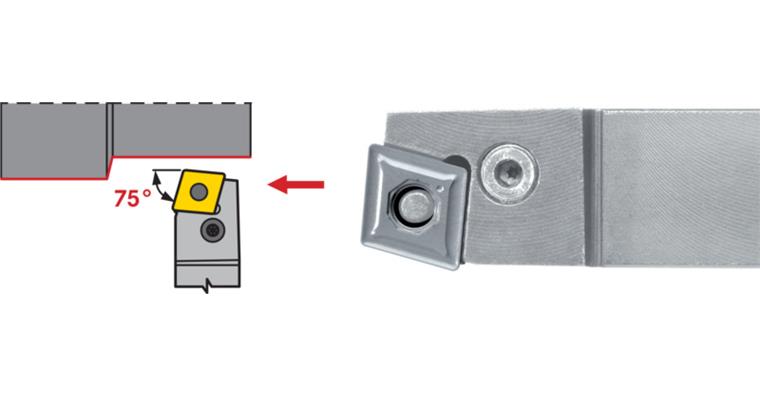

precision-engineered steel support, burnished, hardened, toggle clamp system, type C, 75° pitch angle, 80° tip angle, 0° clearance angle

Advantage
  • extremely stable geometry for longitudinal machining with large feed depths and challenging conditions
  • negative body geometry ensures good stability and absorption of force for large cutting depths


Brand: ATORN
ISO name: PCBN R/L 2525 M16
Shaft height (h=h1): 25 mm
Shank width (b): 25 mm
Length (l1): 150 mm
Length of head (l2): 34 mm
Programming size (f): 22 mm
Suitable for indexable inserts (ISO): CN.. 1606..
Tool design: Right
DIN: 4983

ATORN-No.: 11220140

EAN no.: 4050293347913

Product Datasheet
