ATORN insert holder DCLN, negative, left, DCLN R/L 4040 S19

ATORN insert holder DCLN, negative, left, DCLN R/L 4040 S19

ATORN insert holder DCLN, negative, left, DCLN R/L 4040 S19
Item no: 1018433 114

Online price:

Available in 6-8 working days.

Application
For face and longitudinal turning with CN indexable insert, 80°.

Execution
Precision-manufactured steel support, black oxide, hardened, adjustable clamping system, shape C, 95° pitch angle, 80° tip angle, 0° clearance angle

Advantage
  • Universal use for face and longitudinal turning with large feed depths and unfavourable conditions
  • Negative geometry of the body ensures good stability and force absorption at large cutting depths
  • Broad range of use: suitable for both finishing and roughing operations
  • Adjustable clamp minimises vibrations and ensures good force transfer


Brand: ATORN
ISO name: DCLN R/L 4040 S19
Shaft height (h=h1): 40 mm
Shank width (b): 40 mm
Length of head (l2): 43 mm
Length (l1): 250 mm
Programming size (f): 50 mm
Suitable for indexable inserts (ISO): CN.. 1906..
Tool design: Left
DIN: 4983

ATORN-No.: 11220131

EAN no.: 4050293347760

Product Datasheet
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN insert holder CKJN, negative, right, CKJN R/L 3225 P16
  •
    ATORN insert holder DCLN, negative, right, DCLN R/L 3232 P19
  •
    ATORN insert holder DCLN, negative, right, DCLN R/L 4040 S19
  •
    ATORN insert holder DDJN, negative, right, DDJN R/L 2525 M11
  •
    ATORN insert holder MWLN, negative, left, MWLN R/L 2020 K08
  •
    ATORN insert holder MWLN, negative, left, MWLN R/L 3232 P08
  •
    ATORN insert holder MVJN, negative, right, MVJN R/L 3225 P16
  •
    ATORN insert holder MVJN, negative, left, MVJN R/L 2020 K16
  •

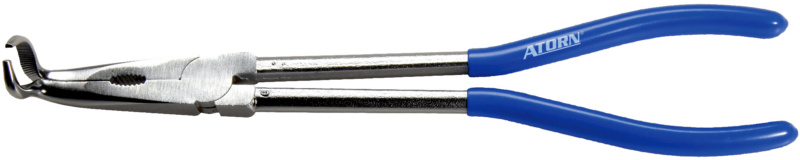

    ATORN spark plug terminal pliers 280 mm, with grip ring toothing
  •

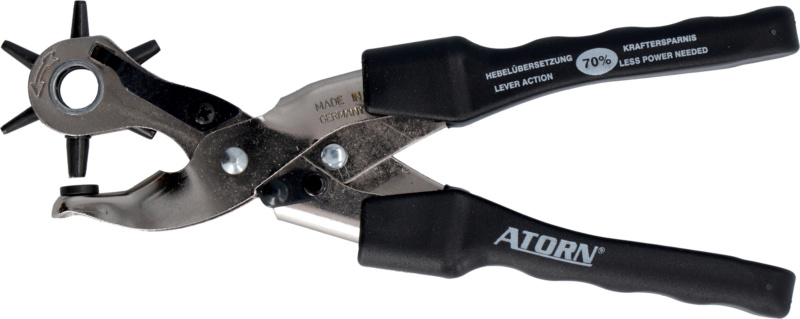

    ATORN revolving punch lever pliers, 2 to 4.5 mm
    13,99 €
  • ATORN Revolving punch lever pliers, 2 to 4.5 mm
  •

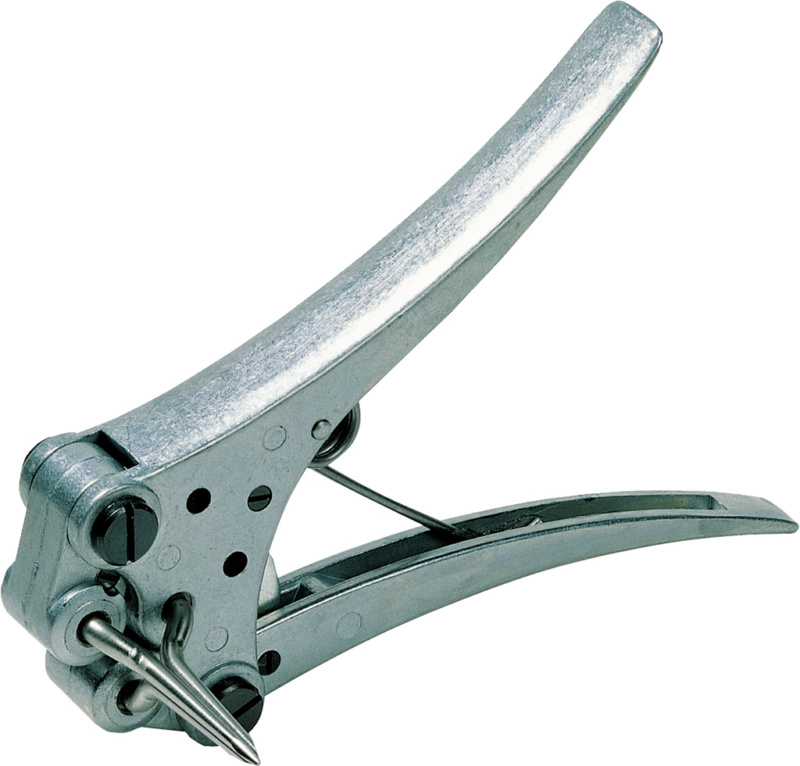

    Three-punch pliers NA - 8/10 for bundle dia. 12–17 mm
