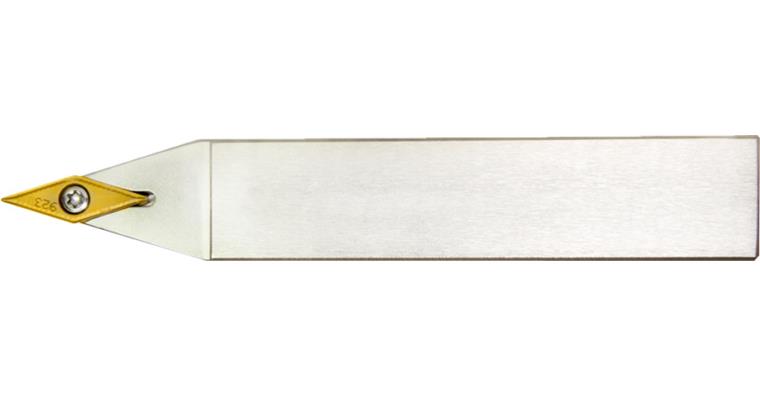

Clamp holder neutral positive 7° t. a. 35° s.a. 72.5° SVVCN 2020 K16 f. RH-WP

Clamp holder neutral positive 7° t. a. 35° s.a. 72.5° SVVCN 2020 K16 f. RH-WP

Clamp holder neutral positive 7° t. a. 35° s.a. 72.5° SVVCN 2020 K16 f. RH-WP
Item no: 1018428 105

Online price:

Available in 6-8 working days.

Application
For copy turning.

Execution
Angle of attack 72.5°


Brand: HHW
Shaft height (h=h1=b): 20 mm
Shank width (b): 20 mm
Length (l1): 125 mm
Length of head (l2): 0 mm
Suitable for indexable inserts (ISO): VC.. 1604..
Tool design: Neutral
Clearance angle: 7 Degree
Cutting edge length: 16 mm
DIN: 4983
Direction of clearance angle: Positive
Grip system: S
Setting angle: 72,5 Degree
Shape of indexable insert ISO: V

EAN no.: 4024496047222

Product Datasheet
