Carbide cutting insert MINI-CUT left LS16.4055.02 copy swivel plate HC8620/TiAlN

Carbide cutting insert MINI-CUT left LS16.4055.02 copy swivel plate HC8620/TiAlN

Carbide cutting insert MINI-CUT left LS16.4055.02 copy swivel plate HC8620/TiAlN
Item no: 1018346 204

Online price:

Available in 6-8 working days.

Execution
Carbide/HC8620 TiAlN-coated

Notes
Angle W1 = 30°

Brand: DUEMMEL
Cutting material: Carbide
Machining direction: Left
max. ap: 0,8 mm
Max. depth (t max.): 0,8 mm

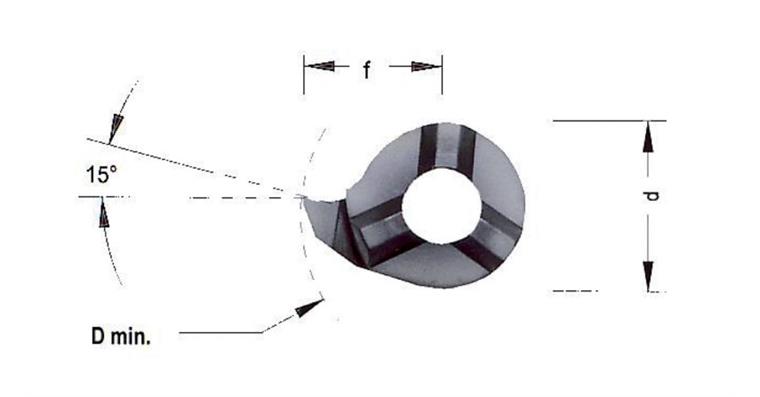

Min. drill hole diameter (D min.): 15,8 mm
Programming size 1 (s): 5,4 mm
Programming size 2 (d): 11,0 mm
Programming size 3 (f): 10,20 mm
Suitable for material group H: 2
Suitable for material group K: 1
Suitable for material group M: 1
Suitable for material group N: 2
Suitable for material group P: 1
Suitable for material group S: 1
Type description (für Klemmhalter Typ): 616

Manufacturer part no.: LS16.4055.02AL41F

EAN no.: 4050293287738

Product Datasheet
