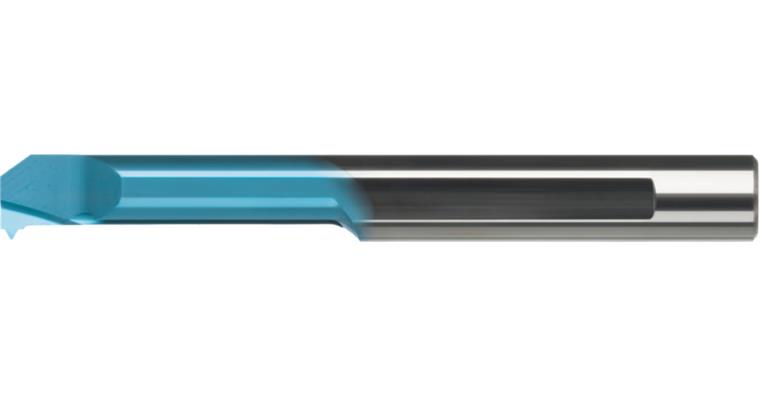

ATORN mini cutting insert AIR 5.0mm L15 1.0 ISO HC5615

ATORN mini cutting insert AIR 5.0mm L15 1.0 ISO HC5615

ATORN mini cutting insert AIR 5.0mm L15 1.0 ISO HC5615
Item no: 1018316 767

Online price:

Available in 4-6 working days.

Application
For thread cutting 60° in steel, stainless steel, special alloys material groups, hard machining to 65HRC at high cutting speeds and mid-range cutting conditions.

Execution
Solid carbide cutting insert 60° with internal cooling

Advantage
  • Very hard cemented carbide grade ensures low wear
  • Exact replication of the thread flanks with exact profile presentation
  • Innovative coating technology for universal use with very high service life requirements
  • No de-burring of thread required due to full-profile geometry


Brand: ATORN
ISO name: AI
Shank diameter (D): 5 mm
Edge angle (α): 60 Degree
Suitable for screw thread: M6 x 1
Length (L): 51 mm
Clearance length (L1): 15 mm
Programming size (F): 2,2 mm
Min. bore diameter (D min.): 4,9 mm
Machining direction: Right
Carbide type: HC5615
Material to be processed: Steel | Stainless steel | Special alloy | Hardened material

ATORN-No.: 11947040

EAN no.: 4050293375954

Product Datasheet
