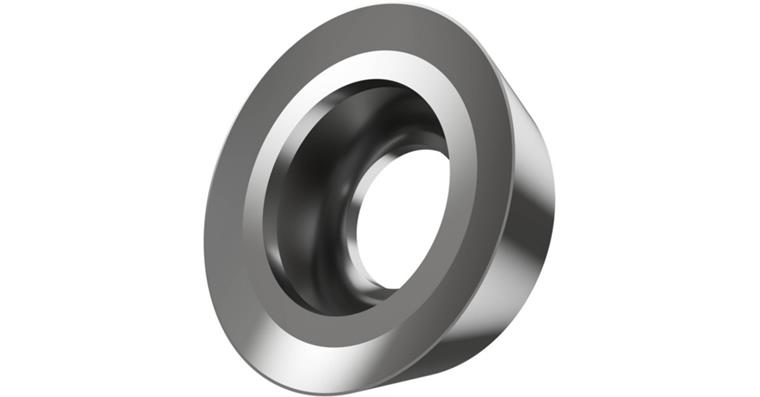

Indexable milling insert RDHX 0702 MOT alu polished, round

Indexable milling insert RDHX 0702 MOT alu polished, round

Indexable milling insert RDHX 0702 MOT alu polished, round
Item no: 1017824 304

Online price:

Only while stocks last: 20

Application
Suitable for face milling, helical interpolation, ramping, progressive immersion and copy milling.


Brand: HHW
Material to be processed: Aluminium
Surface: Uncoated
Cutting material: Carbide
Shape of indexable insert ISO: R
Clearance angle of indexable insert ISO: D
Tolerance class of indexable insert ISO: H
Size of indexable insert ISO: 07
Thickness of indexable insert ISO: 02
Mounting bore diameter (D1): 2,8 mm
Thickness of indexable insert (S): 2,38 mm
Coating: 0 - not applicable
Machining conditions for indexable insert: Good
f min./max.: 0.18-0.20 mm/U
Cutting speed (aluminium long) suitability: 1
Cutting speed (aluminium long) Vc: 420 m/min
Cutting speed (aluminium short) suitability: 1
Cutting speed (aluminium short) Vc: 350 m/min
Cutting speed (brass long) suitability: 1
Cutting speed (brass long) Vc: 300 m/min
Cutting speed (brass short) suitability: 1
Cutting speed (brass short) Vc: 300 m/min
Cutting speed (bronze long) suitability: 1
Cutting speed (bronze long) Vc: 300 m/min
Cutting speed (bronze short) suitability: 1
Cutting speed (bronze short) Vc: 300 m/min
Cutting speed (cast) suitability: 3
Cutting speed (cast) Vc: 0
Cutting speed (graphite/carbon-fibre reinforced) suitability: 3
Cutting speed (graphite/carbon-fibre reinforced) Vc: 0
Cutting speed (hard 55) suitability: 3
Cutting speed (hard 55) Vc: 0
Cutting speed (hard 65) suitability: 3
Cutting speed (hard 65) Vc: 0
Cutting speed (nickel) suitability: 3
Cutting speed (nickel) Vc: 0
Cutting speed (plastic) suitability: 1
Cutting speed (plastic) Vc: 500 m/min
Cutting speed (steel 1000) suitability: 3
Cutting speed (steel 1000) Vc: 0
Cutting speed (steel 1300) suitability: 3
Cutting speed (steel 1300) Vc: 0
Cutting speed (steel 700) suitability: 3
Cutting speed (steel 700) Vc: 0
Cutting speed (super) suitability: 3
Cutting speed (super) Vc: 0
Cutting speed (titanium) suitability: 3
Cutting speed (titanium) Vc: 0
Cutting speed (VA mar) suitability: 3
Cutting speed (VA mar) Vc: 0
Cutting speed (VA off) suitability: 3
Cutting speed (VA off) Vc: 0

EAN no.: 4024496044306

Product Datasheet
