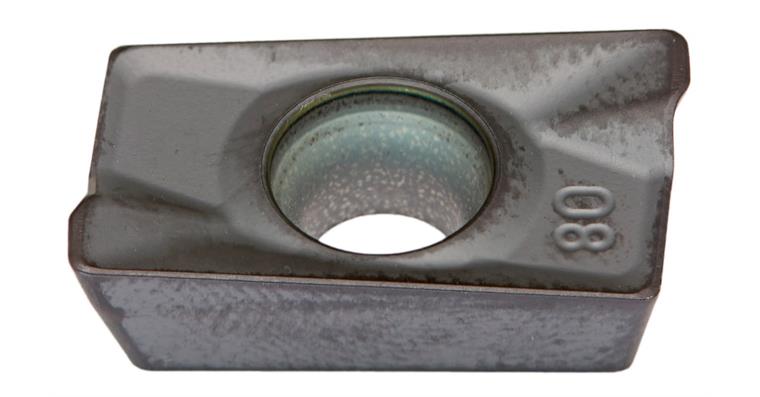

LIZZARD Fräswendeplatte APPT 100308 PDSR-MM HCU 30-M

LIZZARD Fräswendeplatte APPT 100308 PDSR-MM HCU 30-M

LIZZARD Fräswendeplatte APPT 100308 PDSR-MM HCU 30-M
Item no: 1017809 509

Online price:

Available in 5-7 working days.

Application
For milling


Material to be processed: Steel | Stainless steel | Cast metal
Brand: LIZZARD
ISO name: APPT 100308 PDSR-MM
Surface: TiAlN multilayer coating
Cutting material: Carbide
Shape of indexable insert ISO: A
Clearance angle of indexable insert ISO: P
Tolerance class of indexable insert ISO: P
Indexable insert type ISO: T
Size of indexable insert ISO: 10
Thickness of indexable insert ISO: 03
Corner radius of indexable insert ISO: 08
Inner circle diameter (IC): 6,7 mm
Knife edge length (L): 10 mm
Mounting bore diameter (D1): 2,8 mm
Corner radius (RE): 0,8 mm
Thickness of indexable insert (S): 3,18 mm
Carbide type: HCU30M
Coating: CVD
Materials group: P (primary application) | M (primary application) | K (primary application)
Carbide type ISO: P25 | P40 | M20 | M40 | K20 | K40
Min./max. Vc in steel: 100-170 m/min
Min./max. Vc in stainless steel: 70-130 m/min
Min./max. Vc in cast iron: 120-230 m/min
Number of pieces per packet: 10 PCS

EAN no.: 4024496177981

Product Datasheet
