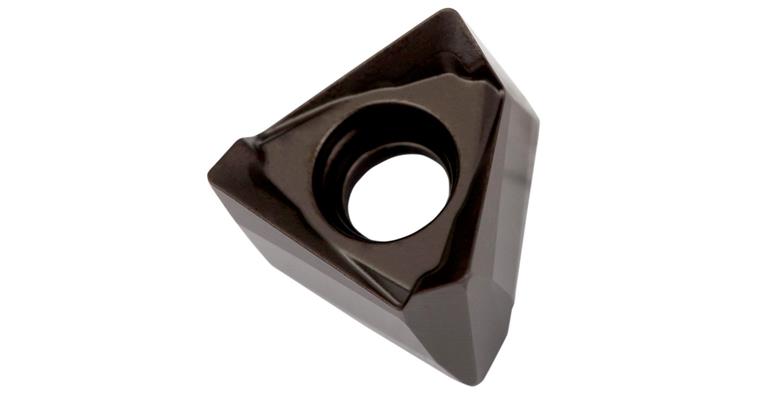

Indexable milling insert TNGX 160608SR-M:M8310

Indexable milling insert TNGX 160608SR-M:M8310

Indexable milling insert TNGX 160608SR-M:M8310
Item no: 1017747 718

Online price:

Available for immediate delivery

Application
- Suitable for milling system TNGX 1606..
- For medium machining

Execution
Geometry with highly positive design

Advantage
Machining a wide range of materials


Brand: DORMER PRAMET
Material to be processed: Steel | Stainless steel | Cast metal
ISO name: TNGX 160608SR-M
Supply type: Medium finishing to roughing operation
Cutting material: SC
Inner circle diameter (IC): 9,525 mm
Knife edge length (L): 16,5 mm
Mounting bore diameter (D1): 4,4 mm
Corner radius (RE): 0,8 mm
Thickness of indexable insert (S): 6,58 mm
Carbide type: M8310
Coating: PVD
Materials group: P (primary application) | M (secondary application) | K (secondary application)
Carbide type ISO: P01 | P10 | M01 | M10 | K01 | K10
Machining conditions for indexable insert: Good
Min./max. Vc in steel: 145-300 m/min
min./max. ap steel: 0.3-10.0 mm
min./max. fz steel: 0.12-0.28 mm/U
Min./max. Vc in stainless steel: 70-150 m/min
min./max. ap stainless steel: 0.3-10.0 mm
min./max. fz stainless steel.: 0.13-0.25 mm/U
Min./max. Vc in cast iron: 135-285 m/min
min./max. ap cast: 0.3-10.0 mm
min./max. fz cast: 0.12-0.28 mm/U
Number of pieces per packet: 10

Manufacturer part no.: 8019793

EAN no.: 3603603842656

Product Datasheet Datasheet cutting values Technical Datasheet
