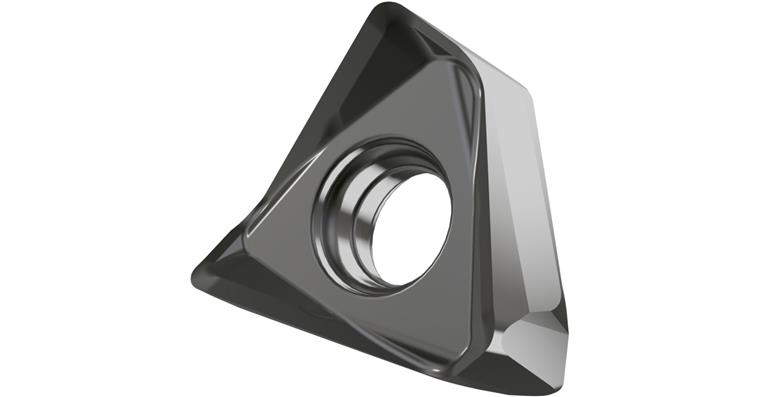

Indexable milling insert TNGX 160608FR-FA:HF7

Indexable milling insert TNGX 160608FR-FA:HF7

Indexable milling insert TNGX 160608FR-FA:HF7
Item no: 1017747 709

Online price:

Available for immediate delivery

Application
- Suitable for milling system TNGX 1606..
- For the finest finish machining

Execution
Geometry with highly positive design

Advantage
Machining a wide range of non-ferrous metals


Brand: DORMER PRAMET
Material to be processed: Non-ferrous metal
ISO name: TNGX 160608FR-FA
Supply type: Fine smoothing
Surface: Uncoated
Cutting material: SC
Inner circle diameter (IC): 9,525 mm
Knife edge length (L): 16,5 mm
Mounting bore diameter (D1): 4,4 mm
Corner radius (RE): 0,8 mm
Thickness of indexable insert (S): 6,85 mm
Carbide type: HF7
Chip breaker code: FA
Materials group: N (primary application)
Carbide type ISO: N10 | N25
Machining conditions for indexable insert: Good
Min./max. Vc in non-ferrous metals: 95-470 m/min
min./max. ap non-ferrous metals: 0.2-9.0 mm
min./max. fz non-ferrous metals: 0.03-0.43 mm/U
Number of pieces per packet: 10

Manufacturer part no.: 8020828

EAN no.: 3603603844445

Product Datasheet Datasheet cutting values Technical Datasheet
