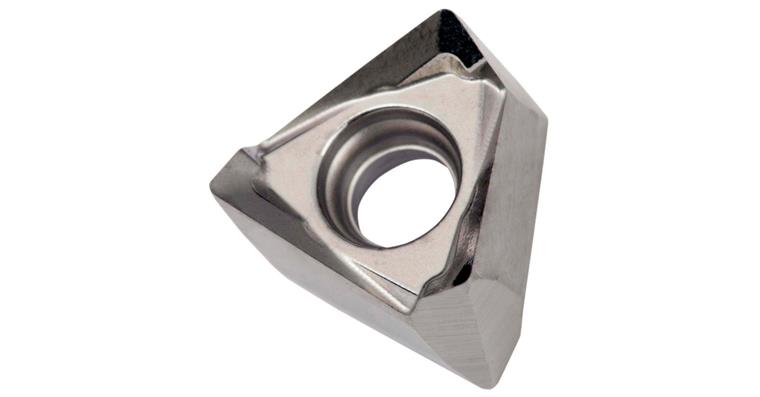

Indexable milling insert TNGX 100404FR-FA:M0315

Indexable milling insert TNGX 100404FR-FA:M0315

Indexable milling insert TNGX 100404FR-FA:M0315
Item no: 1017747 503

Online price:

Available for immediate delivery

Application
- Suitable for milling system TNGX 1004..
- For the finest finish machining

Execution
Geometry with highly positive design

Advantage
Machining a wide range of non-ferrous metals


Brand: DORMER PRAMET
Material to be processed: Non-ferrous metal
ISO name: TNGX 100404FR-FA
Supply type: Fine smoothing
Surface: Coated
Cutting material: SC
Inner circle diameter (IC): 6,0 mm
Knife edge length (L): 10,39 mm
Mounting bore diameter (D1): 2,8 mm
Corner radius (RE): 0,4 mm
Thickness of indexable insert (S): 4,69 mm
Carbide type: M0315
Coating: PVD
Materials group: N (primary application)
Carbide type ISO: N05 | N25
Machining conditions for indexable insert: Medium
Min./max. Vc in non-ferrous metals: 285-1170 m/min
min./max. ap non-ferrous metals: 0.1-4.0 mm
min./max. fz non-ferrous metals: 0.03-0.24 mm/U
Number of pieces per packet: 10

Manufacturer part no.: 7178569

EAN no.: 3603603173569

Product Datasheet Datasheet cutting values Technical Datasheet
