Brand: DORMER PRAMET
Material to be processed: Steel | Cast metal | Hardened steel

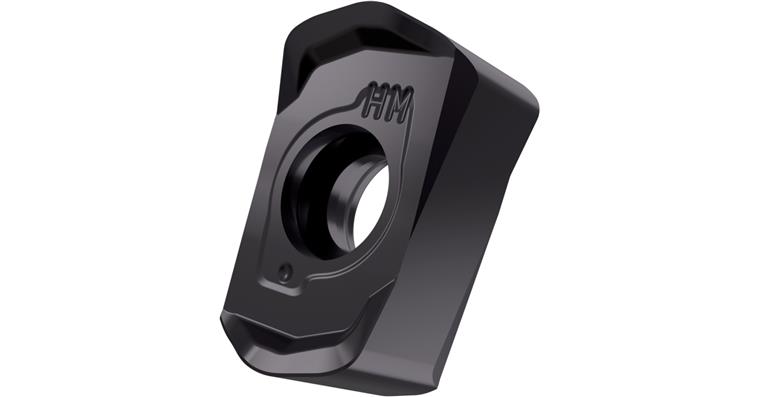

ISO name: BNGX 10T308SR-M
Supply type: Medium finishing to roughing operation
Surface: Coated
Cutting material: SC
Inner circle diameter (W1): 5,8 mm
Knife edge length (L): 9,92 mm
Mounting bore diameter (D1): 2,76 mm
Corner radius (RE): 0,8 mm
Thickness of indexable insert (S): 3,9 mm
Carbide type: 8215
Coating: PVD
Materials group: P (primary application) | K (primary application) | H (secondary application)
Carbide type ISO: P10 | P20 | K10 | K25 | H10 | H15
Machining conditions for indexable insert: Good
Min./max. Vc in steel: 175-350 m/min
min./max. ap steel: 0.3-1.0 mm
min./max. fz steel: 0.2-1.4 mm/U
Min./max. Vc in cast iron: 165-330 m/min
min./max. ap cast: 0.3-1.0 mm
min./max. fz cast: 0.2-1.4 mm/U
Min./max. Vc in hardened steel: 30-70 m/min
min./max. ap hardened steel: 0.3-0.7 mm
min./max. fz hardened steel.: 0.2-0.77 mm/U
Number of pieces per packet: 10

Manufacturer part no.: 7451991

EAN no.: 3603603386419
