Countersink milling cut. 10°-80° adj. f. TCMT and SCMT cutting inserts 25x150 mm

Countersink milling cut. 10°-80° adj. f. TCMT and SCMT cutting inserts 25x150 mm

Countersink milling cut. 10°-80° adj. f. TCMT and SCMT cutting inserts 25x150 mm
Item no: 1017526 102

Online price:

Available in 4-6 working days.

Application
Universal chamfer cutter for deburring, chamfering and countersinking in rigid operating conditions. Cannot be used on drills.

Execution
  • Adjustable from 10°-80°
  • With straight shank in accordance with DIN 1835 B
  • Nickel-plated carrier
  • +/- 2.5° scale tolerance
  • For precise adjustments, please use a presetting device
  • Clamping screw tightening torque (indexable insert) M2.5 = 1.2 Nm, M4 = 5.2 Nm
  • With replacement box for using TCMT 16.. and SPM.1204 indexable inserts

Delivery
1x carrier incl. 1x cassette for TC..16.. and 1x cassette SC..12.., without indexable inserts

Notes
Auxiliary tool: Max. cutting depth 1 mm

Brand: ATORN

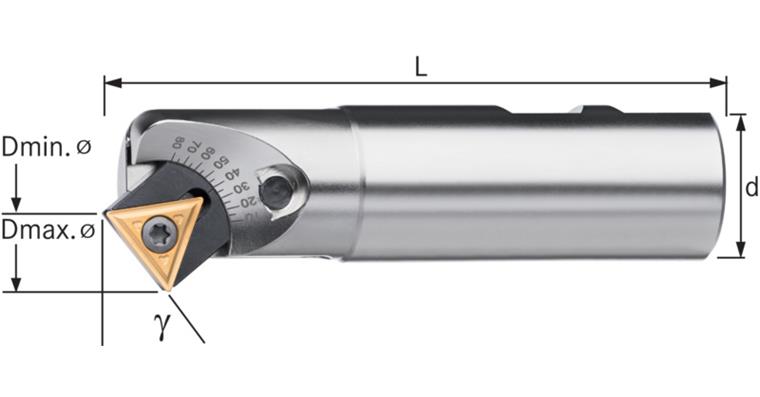

Cutting edge diameter (D): 25 mm
Min./max. chamfer angle: 10-80 Degree
Min./max. diameter at 10 degrees: 5-32 mm
Min./max. diameter at 45 degrees: 11-33 mm
Min./max. diameter at 80 degrees: 23-27 mm
Length (l3): 150 mm
Shank diameter (d): 25 mm
Number of cutting edges: 1 PCS
Suitable for indexable inserts: SC.. 1204.. | TC.. 16T3..
Coolant supply: External
Cutting direction: Right-hand cutting
Max. chamfer angle: 80 Degree
Max. diameter at 10 degrees: 32 mm
Max. diameter at 45 degrees: 33 mm
Max. diameter at 80 degrees: 27 mm
Min. chamfer angle: 10 Degree
Min. diameter at 10 degrees: 5 mm
Min. diameter at 45 degrees: 11 mm
Min. diameter at 80 degrees: 23 mm
Surface: Nickel plated
Tolerance of shank diameter: h7
Tool holding device: Cylinder shank
