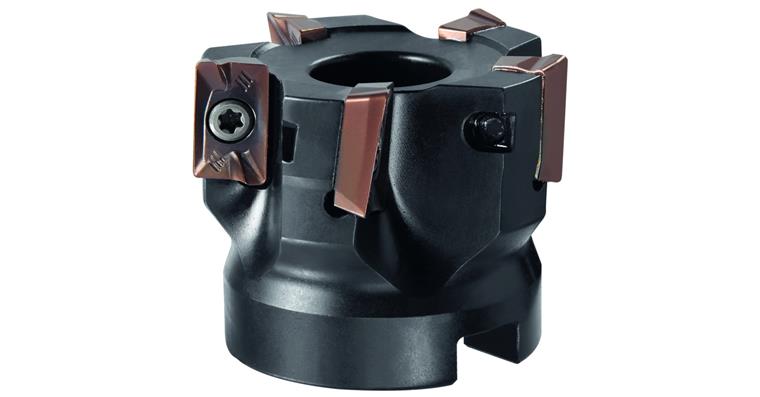

LIZZARD Eckfräser 90° ECOline für AP.. 1604 Z5 Ø50x22x40 mm

LIZZARD Eckfräser 90° ECOline für AP.. 1604 Z5 Ø50x22x40 mm

LIZZARD Eckfräser 90° ECOline für AP.. 1604 Z5 Ø50x22x40 mm
Item no: 1017503 203

Online price:

Still in stock: 1

Application
For general shoulder, face, groove, circumferential and heel milling

Execution
  • Burnished, robust carrier tool
  • Soft cutting owing to the positive installation position of the indexable insert
  • Stable milling behaviour
  • Axial runout < 0.03 mm
  • Concentricity < 0.03 mm
  • Precise 90° shoulder milling

Delivery
1x holder incl. indexable insert screw, without indexable inserts


Brand: LIZZARD
Cutting edge diameter (D): 50 mm
Length (H): 40 mm
Bore diameter (d): 22 mm
max. ap: 16 mm
Number of cutting edges: 5 PCS
Coolant supply: Internal
Cutting direction: Right-hand cutting
Surface: Burnished
Tool holding device: Location bore

EAN no.: 4024496173457

Product Datasheet
