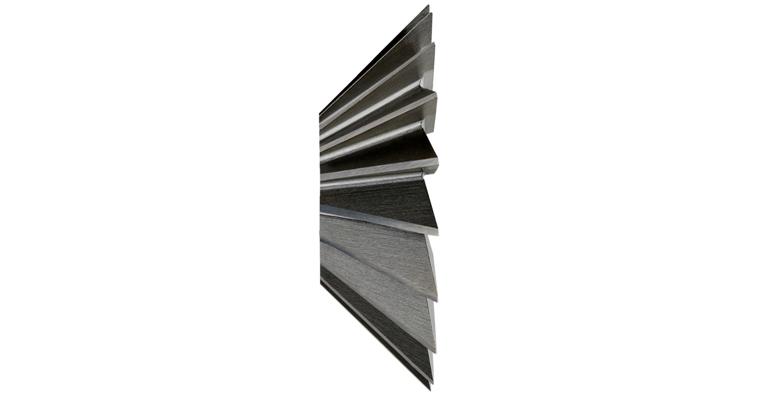

Single-angle milling cutter DIN 842 type H 45° HSS-E 80x22 mm

Single-angle milling cutter DIN 842 type H 45° HSS-E 80x22 mm

Single-angle milling cutter DIN 842 type H 45° HSS-E 80x22 mm
Item no: 1017488 104

Online price:

Available in 11-13 working days.

Application
For milling dovetail guides etc. For materials up to approx. 1000 N/mm² strength.

Execution
  • Right-cutting
  • Straight-grooved
  • For cutting on periphery and end face
  • With longitudinal groove in accordance with DIN 138


Brand: LIZZARD
Material to be processed: Universal use
Cutting edge diameter: 80 mm
Chamfer angle: 45 Degree
Bore diameter: 22 mm
Number of cutting edges (Z): 20 PCS
Type: H
Coolant supply: External
Cutting direction: Right-hand cutting
