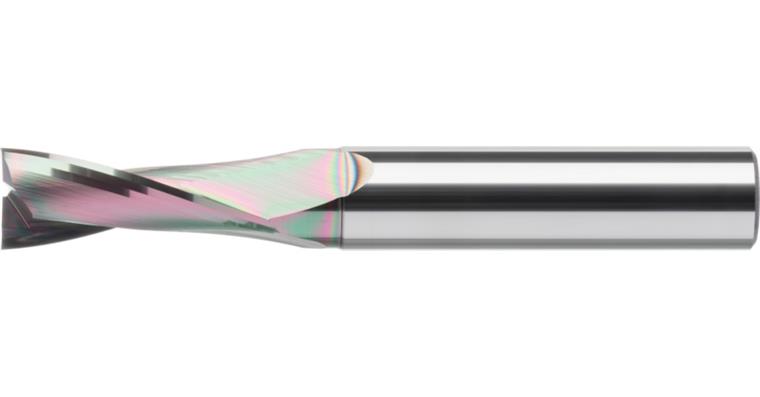

SC end mill, cutting diameter 16 mm, cutting length 36 mm, length 92 mm

SC end mill, cutting diameter 16 mm, cutting length 36 mm, length 92 mm

SC end mill, cutting diameter 16 mm, cutting length 36 mm, length 92 mm
Item no: 1016887 108

Online price:

Available in 4-6 working days.

Application
For dive, groove and keyway milling as well as helical and circumferential milling in all non-ferrous metals and plastics with maximum results.

Execution
  • Solid carbide ultra-fine grain
  • Straight shank in line with DIN 6535 HA
  • ULTRA-N PRO-coated
  • sharp-edged
  • Defined edge rounding of the cutting edge
  • centre cutting
  • with clearance
  • Polish sanding

Advantage
  • Ultra-smooth coating thickness
  • Excellent chip removal
  • defined edge rounding for maximum service life
  • Large chip area for optimum chip flow
  • Ideal for NF metals and plastics


Brand: ATORN
Cutting material: SC
Surface: ULTRA N PRO
Type: W
Number of cutting edges (Z): 3 PCS
Twist angle: 20°
Tool holding device: HA parallel shank
Construction length: Normal
Cutting edge diameter: 16 mm
Cutting edge length: 36 mm
Clearance length: 44 mm
Length: 92 mm
Clearance diameter: 15,7 mm
Shank diameter: 16 mm
fz aluminium: 0,12 mm
Overall stainless steel suitability: 3
fitness not iron total: 1
fitness Titan/Nickel/Super total: 3

ATORN-No.: 12040728

EAN no.: 4050293627763

Product Datasheet Datasheet cutting values
