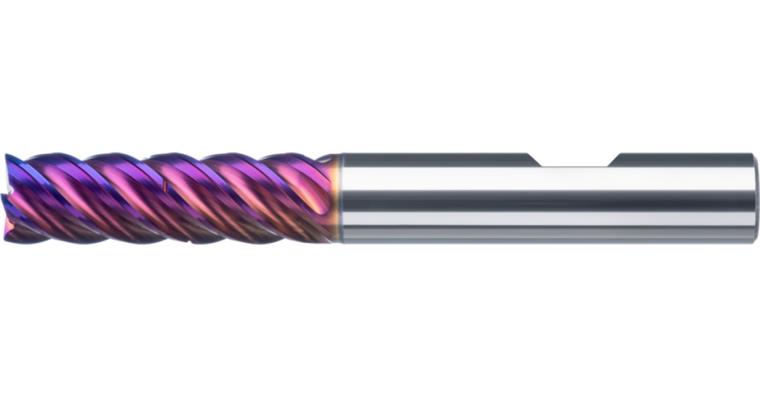

ATORN SC TVC end mill 20x62x126 mm T5 HB shank 3xD RT Pro

ATORN SC TVC end mill 20x62x126 mm T5 HB shank 3xD RT Pro

ATORN SC TVC end mill 20x62x126 mm T5 HB shank 3xD RT Pro
Item no: 1016796 120

Online price:

Available in 6-8 working days.

Application
The TVC end mills are optimally suited for processing with modern milling strategies. 3xD cutting lengths, reinforced cores and specially developed chip breaker geometries allow high application depths with maximum process reliability.

Execution
  • Cutting material, Ultra Micro fine grain
  • Cutting edge finish
  • Straight shank in line with DIN 6535 HB
  • Type H
  • Centre cutting and edge protection chamfer
  • Special chip breakers for short chips
  • Uneven twist angle
  • With RockTec PRO coating


Brand: ATORN
Cutting material: SC
Surface: RockTec PRO
Type: H
Number of cutting edges (Z): 5 PCS
Twist angle: 40°
Tool holding device: HB parallel shank
Construction length: Extra long
Cutting edge diameter: 20 mm
Cutting edge length: 62 mm
Clearance length: 70 mm
Length: 126 mm
Clearance diameter: 19,8 mm
Shank diameter: 20 mm
fz hard 65 HRC: 0,13 mm
Overall stainless steel suitability: 3
fitness not iron total: 3
fitness Titan/Nickel/Super total: 3

ATORN-No.: 11264470

EAN no.: 4050293747058

Product Datasheet Datasheet cutting values
