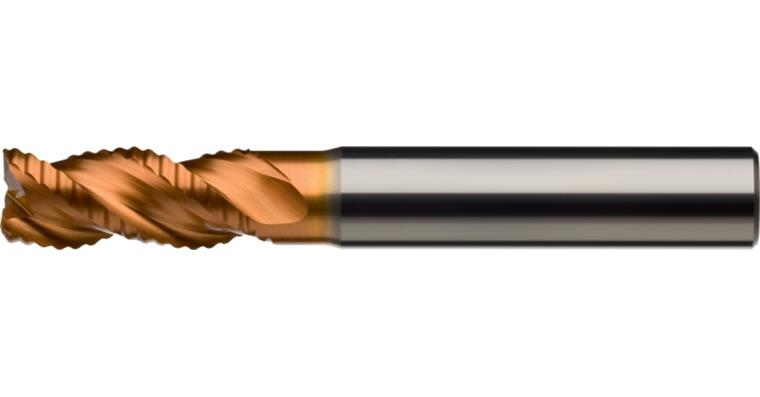

ATORN SC roughing cutter IC T3 HA, 6.0 x 13 x 18 x 57 mm, coated

ATORN SC roughing cutter IC T3 HA, 6.0 x 13 x 18 x 57 mm, coated

ATORN SC roughing cutter IC T3 HA, 6.0 x 13 x 18 x 57 mm, coated
Item no: 1016735 101

Online price:

Available in 6-8 working days.

Application
Suitable for rough cutting with outstanding material removal rates on NF metals.

Execution
  • Solid carbide ultra-fine grain
  • Straight shank in accordance with DIN 6535 HA
  • With edge protection chamfer
  • Defined edge rounding of cutter
  • Centre cutting
  • With clearance
  • ZrCN ULTRA N-coated
  • With internal cooling


Brand: ATORN
Cutting material: SC
Surface: ULTRA N
Type: WF
Number of cutting edges (Z): 3 PCS
Twist angle: 40°
Tool holding device: HA parallel shank
Construction length: Normal
Cutting edge diameter: 6 mm
Cutting edge length: 13 mm
Clearance length: 18 mm
Length: 57 mm
Edge protection chamfer length: 0,4 mm
Clearance diameter: 5,6 mm
Shank diameter: 6 mm
fz aluminium: 0,108 mm

ATORN-No.: 11263410

EAN no.: 4050293341522

Product Datasheet Datasheet cutting values
