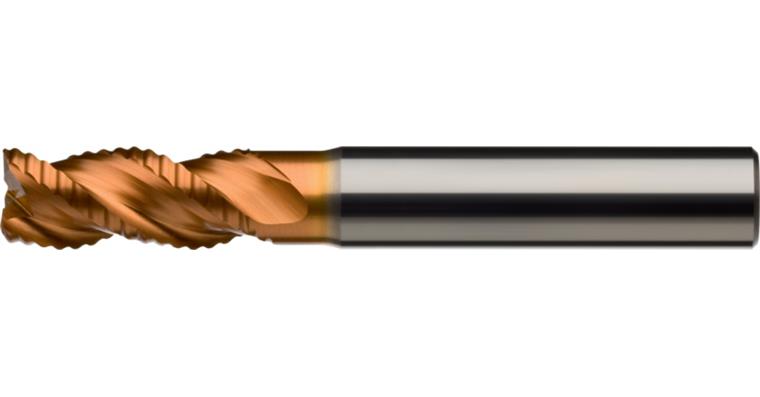

ATORN solid carbide roughing cutter T3 HA, 12.0 x 26 x 36 x 83 mm, coated

ATORN solid carbide roughing cutter T3 HA, 12.0 x 26 x 36 x 83 mm, coated

ATORN solid carbide roughing cutter T3 HA, 12.0 x 26 x 36 x 83 mm, coated
Item no: 1016732 104

Online price:

Still in stock: 1

Application
Suitable for rough cutting with outstanding material removal rates on NF metals.

Execution
  • Solid carbide ultra-fine grain
  • Straight shank in accordance with DIN 6535 HA
  • With edge protection chamfer
  • Defined edge rounding of cutter
  • Centre cutting
  • With clearance
  • ZrCN ULTRA N-coated


Brand: ATORN
Cutting material: SC
Surface: ULTRA N
Type: WF
Number of cutting edges (Z): 3 PCS
Twist angle: 40°
Tool holding device: HA parallel shank
Construction length: Normal
Cutting edge diameter: 12 mm
Cutting edge length: 26 mm
Clearance length: 36 mm
Length: 83 mm
Edge protection chamfer length: 0,4 mm
Clearance diameter: 11,4 mm
Shank diameter: 12 mm
fz aluminium: 0,145 mm

ATORN-No.: 11263373

EAN no.: 4050293341430

Product Datasheet Datasheet cutting values
