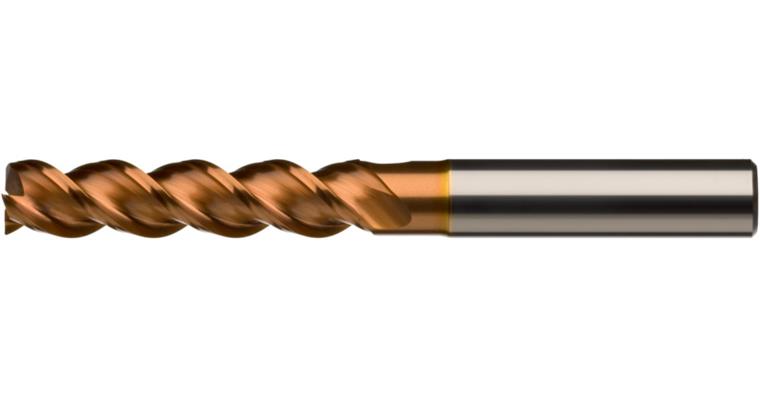

ATORN solid carbide end mill T3 long HA, 12.0x53x55x100mm, coated

ATORN solid carbide end mill T3 long HA, 12.0x53x55x100mm, coated

ATORN solid carbide end mill T3 long HA, 12.0x53x55x100mm, coated
Item no: 1016731 107

Online price:

Will be ordered for you

Application
End mill for universal machining of non-ferrous metals.

Execution
  • solid carbide ultra-fine grain
  • straight shank in accordance with DIN 6535 HA
  • defined edge rounding of the cutting edge
  • centre cutting
  • with clearance
  • ZrCN ULTRA-N coated
  • sharp-edged


Brand: ATORN
Cutting material: SC
Surface: ULTRA N
Type: W
Number of cutting edges (Z): 3 PCS
Twist angle: 45°
Tool holding device: HA parallel shank
Construction length: Long
Cutting edge diameter: 12 mm
Cutting edge length: 53 mm
Clearance length: 55 mm
Length: 100 mm
Clearance diameter: 11,4 mm
Shank diameter: 12 mm
fz aluminium: 0,097 mm
Overall stainless steel suitability: 3
fitness not iron total: 1
fitness Titan/Nickel/Super total: 3

ATORN-No.: 11263356

EAN no.: 4050293341379

Product Datasheet Datasheet cutting values
