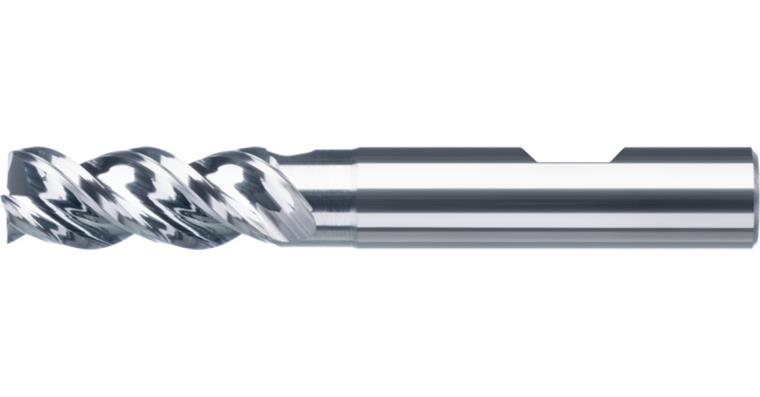

ATORN SC end mill with polished cutting edges 20.0 mm HB shank 3 teeth

ATORN SC end mill with polished cutting edges 20.0 mm HB shank 3 teeth

ATORN SC end mill with polished cutting edges 20.0 mm HB shank 3 teeth
Item no: 1016725 209

Online price:

Available in 6-8 working days.

Application
End mill for universal machining of non-ferrous metals.

Execution
  • Solid carbide ultra-fine grain
  • Centre cutting
  • With clearance
  • Uncoated
  • Straight shank in accordance with DIN 6535 HB
  • Sharp-edged
  • Polished design - sharpened edges for even smoother cutting and improved chip removal, in plastics too


Brand: ATORN
Cutting material: SC
Surface: Polished
Type: W
Number of cutting edges (Z): 3 PCS
Twist angle: 45°
Tool holding device: HB parallel shank
Construction length: Normal
Cutting edge diameter: 20 mm
Cutting edge length: 40 mm
Clearance length: 54 mm
Length: 104 mm
Clearance diameter: 19,4 mm
Shank diameter: 20 mm
fz aluminium: 0,12 mm
Overall stainless steel suitability: 3
fitness not iron total: 1
fitness Titan/Nickel/Super total: 3

ATORN-No.: 11263960

EAN no.: 4050293648669

Product Datasheet
