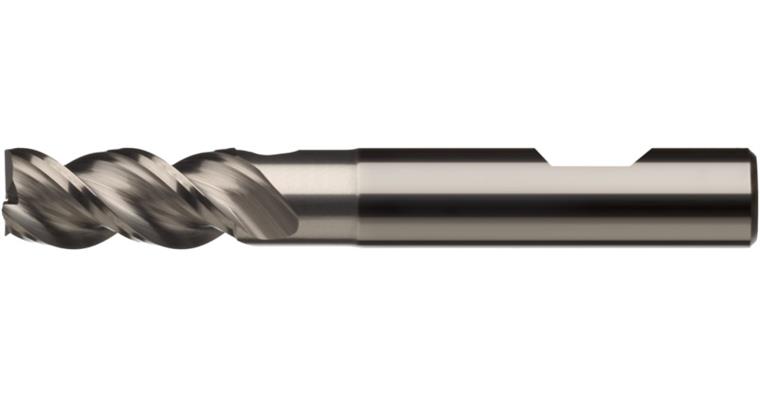

ATORN solid carbide end mill T3 HB, 8.0 x 22 x 28 x 64 mm, plain with KF

ATORN solid carbide end mill T3 HB, 8.0 x 22 x 28 x 64 mm, plain with KF

ATORN solid carbide end mill T3 HB, 8.0 x 22 x 28 x 64 mm, plain with KF
Item no: 1016724 105

Online price:

Still in stock: 9

Application
End mill for universal machining of NF metals.

Execution
  • Solid carbide ultra-fine grain
  • Centre cutting
  • With clearance
  • Uncoated
  • Straight shank in accordance with DIN 6535 HB
  • With edge protection chamfer
  • Defined edge rounding of cutter
  • Mirror finish


Brand: ATORN
Cutting material: SC
Surface: Uncoated
Type: W
Number of cutting edges (Z): 3 PCS
Twist angle: 45°
Tool holding device: HB parallel shank
Construction length: Normal
Cutting edge diameter: 8 mm
Cutting edge length: 22 mm
Clearance length: 28 mm
Length: 64 mm
Edge protection chamfer length: 0,1 mm
Clearance diameter: 7,6 mm
Shank diameter: 8 mm
fz aluminium: 0,06 mm
Overall stainless steel suitability: 3
fitness not iron total: 1
fitness Titan/Nickel/Super total: 3

ATORN-No.: 11263234

EAN no.: 4050293340723

Product Datasheet Datasheet cutting values
