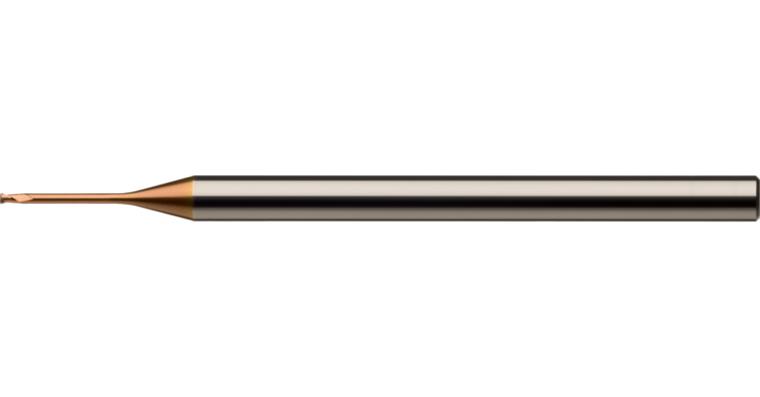

ATORN solid carbide mini end mill T2 HA, 1.5 x 1.8 x 15 x 65 mm, coated

ATORN solid carbide mini end mill T2 HA, 1.5 x 1.8 x 15 x 65 mm, coated

ATORN solid carbide mini end mill T2 HA, 1.5 x 1.8 x 15 x 65 mm, coated
Item no: 1016710 108

Online price:

Available for immediate delivery

Application
Miniature end mill with long neck for machining NF metals.

Execution
  • Solid carbide ultra-fine grain
  • Straight shank in accordance with DIN 6535 HA
  • Defined edge rounding of cutter
  • With edge protection chamfer
  • With clearance
  • ZrCN ULTRA N-coated


Brand: ATORN
Cutting material: SC
Surface: ULTRA N
Type: W
Number of cutting edges (Z): 2 PCS
Twist angle: 30°
Tool holding device: HA parallel shank
Construction length: Normal
Cutting edge diameter: 1,5 mm
Cutting edge length: 1,8 mm
Clearance length: 15 mm
Length: 65 mm
Edge protection chamfer length: 0,1 mm
Clearance diameter: 1,44 mm
Shank diameter: 4 mm
fz aluminium: 0,008 mm
Overall stainless steel suitability: 3
fitness not iron total: 1
fitness Titan/Nickel/Super total: 3

ATORN-No.: 11263007

EAN no.: 4050293339925

Product Datasheet Datasheet cutting values
