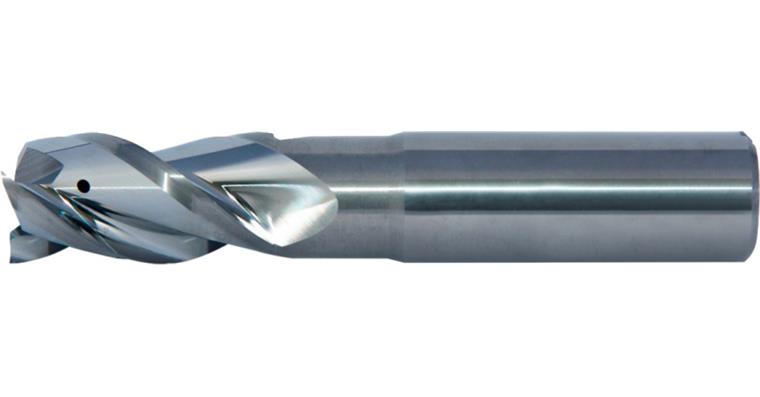

SC end mill with IC, clearance diameter 11 mm, clearance length 37 mm

SC end mill with IC, clearance diameter 11 mm, clearance length 37 mm

SC end mill with IC, clearance diameter 11 mm, clearance length 37 mm
Item no: 1016673 106

Online price:

Still in stock: 6

Application
End mill with uneven pitch for roughing and finishing of non-ferrous metals with maximum machining performance.

Execution
  • Solid carbide ultra-fine grain
  • Straight shank in line with DIN 6535 HA
  • With chip breakers on the front
  • Defined edge rounding of the cutting edge
  • centre cutting
  • With edge protection radius
  • Polish sanding
  • with internal cooling

Advantage
  • High material removal rate
  • Uneven pitch reduces vibrations
  • Corner radius increases the service life
  • High-gloss polished cutting edges for better chip removal
  • Ideal for NF metals and plastics


Brand: ATORN
Cutting material: SC
Surface: Uncoated
Type: W
Number of cutting edges (Z): 3 PCS
Twist angle: 40°
Tool holding device: HA parallel shank
Construction length: Normal
Cutting edge diameter: 12 mm
Cutting edge length: 25 mm
Clearance length: 37 mm
Length: 75 mm
Clearance diameter: 11 mm
Shank diameter: 12 mm
fz aluminium: 0,077 mm
Overall stainless steel suitability: 3
fitness not iron total: 1
fitness Titan/Nickel/Super total: 3

ATORN-No.: 11869185

EAN no.: 4050293640380

Product Datasheet Datasheet cutting values
