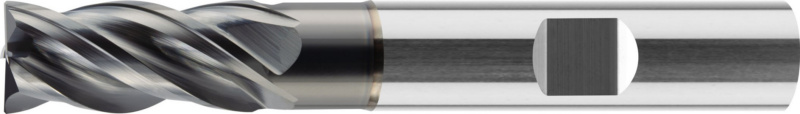

Troch. mill. cut. (steel) 5 cut. edges w. clear. SC/AlCrN DIN 6535 HB dia. 12 mm

Troch. mill. cut. (steel) 5 cut. edges w. clear. SC/AlCrN DIN 6535 HB dia. 12 mm

Troch. mill. cut. (steel) 5 cut. edges w. clear. SC/AlCrN DIN 6535 HB dia. 12 mm
Item no: 1016664 212

Online price:

Still in stock: 8

Application
For carbon steel.

Execution
  • 3xD cutting length
  • With chip breaker
  • With variable 37–38° helix angle
  • With clearance


Brand: LIZZARD
Material to be processed: Steel
Cutting edge diameter: 12 mm
Cutting edge length: 36 mm
Clearance length: 46 mm
Length: 93 mm
Clearance diameter: 11,5 mm
Shank diameter: 12 mm
Edge protection chamfer length: 0,24 mm
Edge protection for chamfer angle: 45 Degree
Number of cutting edges (Z): 5 PCS
Twist angle: 37° (right) | 38° (right)
Center cutting: No
Construction length: Long
Design of cutting edges: Smoothing
Cutting direction: Right-hand cutting
fz steel 1000: 0,140 mm
