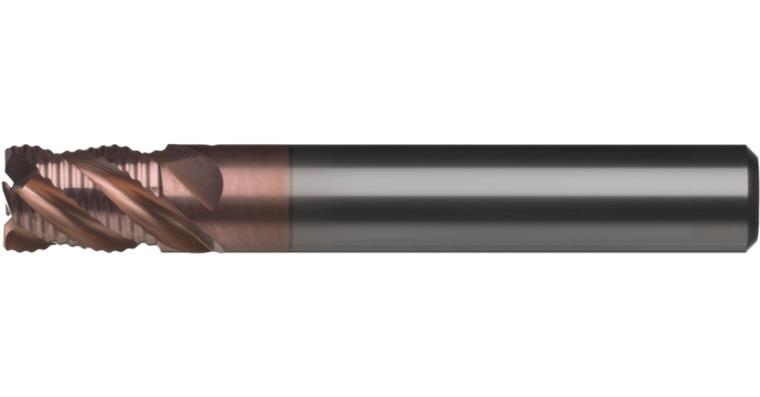

ATORN Ultra SC VA roughing cutter short 10.0x13x66mm shank DIN 6535HB

ATORN Ultra SC VA roughing cutter short 10.0x13x66mm shank DIN 6535HB

ATORN Ultra SC VA roughing cutter short 10.0x13x66mm shank DIN 6535HB
Item no: 1016630 205

Online price:

Still in stock: 2

Application
Roughing cutter for universal machining.

Execution
  • Solid carbide ultra-fine grain
  • Straight shank in accordance with DIN 6535 HB
  • Centre cutting
  • With clearance
  • ULTRA-coated


Brand: ATORN
Cutting material: SC
Surface: ULTRA
Type: VA
Number of cutting edges (Z): 4 PCS
Twist angle: 45°
Tool holding device: HB parallel shank
Construction length: Short
Cutting edge diameter: 10 mm
Cutting edge length: 13 mm
Clearance length: 24 mm
Length: 66 mm
Edge protection chamfer length: 0,2 mm
Clearance diameter: 9,8 mm
Shank diameter: 10 mm
fz steel 1000: 0,056 mm

ATORN-No.: 10910906

EAN no.: 4050293092714

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN Ultra SC VA roughing cutter short 10.0x13x66mm DIN 6535 HA shaft
  •
    ATORN Ultra SC VA roughing cutter long 10.0x22x72mm, DIN 6535 HA shaft
  •
    ATORN Ultra SC VA roughing cutter short 12.0x16x73mm DIN 6535 HA shaft
  •
    ATORN Ultra SC VA roughing cutter long 12.0x26x83mm, DIN 6535 HA shaft
  •
    ATORN Ultra SC VA roughing cutter long 16.0x32x92mm, DIN 6535 HA shaft
  •
    ATORN Ultra SC VA roughing cutter long 10.0x22x72mm, DIN 6535 HB shaft
  •
    ATORN Ultra SC VA roughing cutter long 12.0x26x83mm, DIN 6535 HB shaft
  •
    ATORN Ultra SC VA roughing cutter short 16.0x19x82mm shank DIN 6535HB
  •
    ATORN Ultra SC VA roughing cutter short 20.0x19x92mm shank DIN 6535HB
  •
    1/2 inch hexagon socket DIN 3124/ISO 2725 HPQ steel AF 8 mm
  •
    1/2 inch hexagon socket DIN 3124/ISO 2725 HPQ steel AF 9 mm
  •

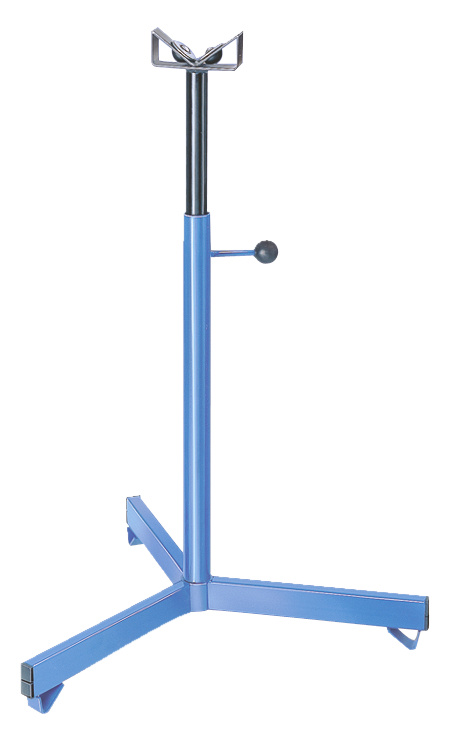

    Material support stand f pipes up to 4 in adjust. height 680-1200 mm max. 500 kg
