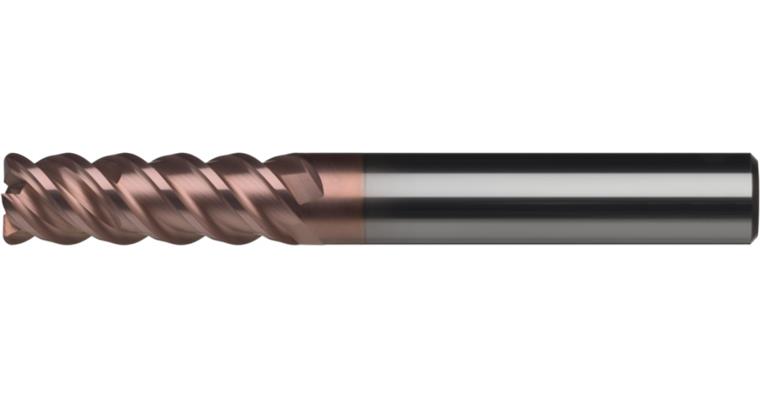

ATORN SC HSC end mill, T=4, 6.0 mm, DIN 6535HA TiAlN shank, L=18

ATORN SC HSC end mill, T=4, 6.0 mm, DIN 6535HA TiAlN shank, L=18

ATORN SC HSC end mill, T=4, 6.0 mm, DIN 6535HA TiAlN shank, L=18
Item no: 1016626 061

Online price:

Available in 5-7 working days.

Application
End/torus milling cutter for universal machining.

Execution
  • Solid carbide ultra-fine grain
  • Straight shank pursuant to DIN 6535 HA
  • Centre cutting
  • ULTRA-coated
  • Edge protection chamfer/edge radius
  • Extra-long design without clearance


Brand: ATORN
Cutting material: SC
Surface: ULTRA
Type: N
Number of cutting edges (Z): 4 PCS
Twist angle: 52°
Tool holding device: HA parallel shank
Construction length: Normal
Cutting edge diameter: 6 mm
Cutting edge length: 18 mm
Length: 62 mm
Edge protection chamfer length: 0,1 mm
Shank diameter: 6 mm
fz steel 1300: 0,04 mm
Overall stainless steel suitability: 0
fitness not iron total: 0
fitness Titan/Nickel/Super total: 0

ATORN-No.: 10910939

EAN no.: 4050293092882

Product Datasheet Datasheet cutting values
