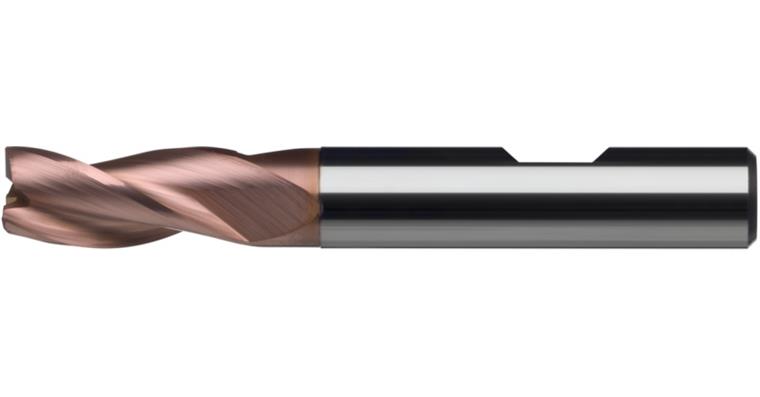

ATORN solid carbide square end mill ultra 9.70 mm shank DIN 6535HB T=3

ATORN solid carbide square end mill ultra 9.70 mm shank DIN 6535HB T=3

ATORN solid carbide square end mill ultra 9.70 mm shank DIN 6535HB T=3
Item no: 1016606 115

Online price:

Available in 5-7 working days.

Application
End mill for universal use when plunge milling, groove milling and keyway cutting as well as face milling and peripheral milling.

Execution
  • solid carbide ultra-fine grain
  • straight shank in accordance with DIN 6535 HB
  • centre cutting
  • radial relief
  • with clearance
  • ULTRA-coated

Notes
The undersized dimensions are particularly suited for cutting keyways

Brand: ATORN
Cutting material: SC
Surface: ULTRA
Type: N
Number of cutting edges (Z): 3 PCS
Twist angle: 30°
Tool holding device: HB parallel shank
Construction length: Normal
Cutting edge diameter: 9,7 mm
Cutting edge length: 22 mm
Clearance length: 30 mm
Length: 72 mm
Edge protection chamfer length: 0,1 mm
Clearance diameter: 9,5 mm
Shank diameter: 10 mm
fz steel 1000: 0,05 mm
Overall stainless steel suitability: 1
fitness not iron total: 2
fitness Titan/Nickel/Super total: 2

ATORN-No.: 10910727

EAN no.: 4050293091205

Product Datasheet Datasheet cutting values
