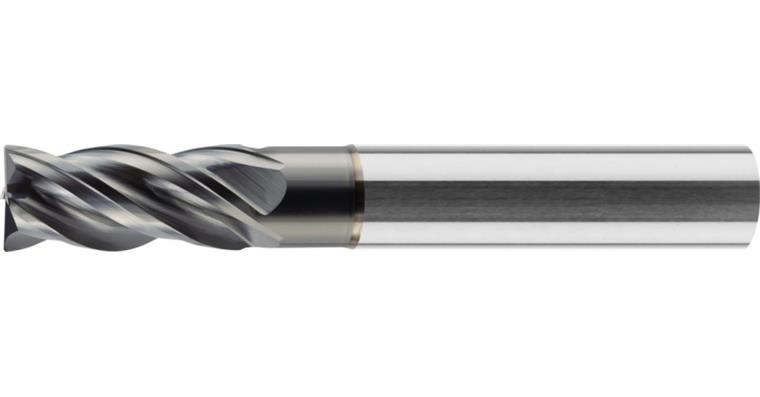

Solid carb. HPC end mill STEEL Varocon-coat. Z4 HA shaft lg dia. 20 mm

Solid carb. HPC end mill STEEL Varocon-coat. Z4 HA shaft lg dia. 20 mm

Solid carb. HPC end mill STEEL Varocon-coat. Z4 HA shaft lg dia. 20 mm
Item no: 1016593 120

Online price:

Available for immediate delivery

Application
High-performance tool for steel machining. For roughing and finishing.

Execution
  • Specially edge-treated solid carbide HPC end mill with Varocon Plus coating
  • Micro-geometry and defined cutting edge preparation
  • Polished chip chambers
  • With clearance

Advantage
  • High machining volumes possible
  • Additional special feature of the HHW HPC Premium cutter is the face specially optimised for ramping

Notes
This tool is not suitable for steels with high chromium content. Make sure the tool and workpiece are strongly clamped.

Brand: LIZZARD
Material to be processed: Steel | Cast metal
Cutting edge diameter: 20 mm
Cutting edge length: 38 mm
Clearance length: 54 mm
Length: 104 mm
Clearance diameter: 19,5 mm
Shank diameter: 20 mm
Edge protection chamfer length: 0,40 mm
Edge protection for chamfer angle: 45 Degree
Number of cutting edges (Z): 4 PCS
Twist angle: 35-38°
Center cutting: Yes
Type: HPC
Construction length: Normal
Design of cutting edges: Smoothing
Cutting direction: Right-hand cutting
fz steel 1000: 0,11 mm
