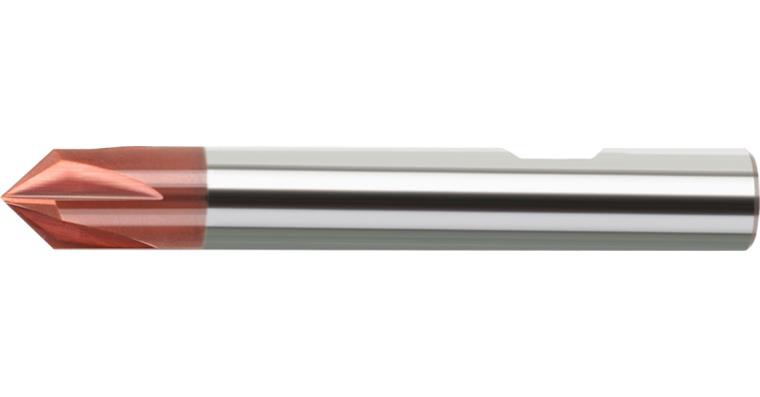

ATORN SC chamfer mill 90 degrees diameter 8 mm Z5 ULTRA HB

ATORN SC chamfer mill 90 degrees diameter 8 mm Z5 ULTRA HB

ATORN SC chamfer mill 90 degrees diameter 8 mm Z5 ULTRA HB
Item no: 1016581 103

Online price:

Available in 4-6 working days.

Application
For producing 45° chamfers and for deburring up to 1300 N/mm²

Execution
  • defined cutting edge rounding
  • 3–5 teeth
  • High-performance ULTRA coating for universal application

Notes
Shank variant HA up to dia. 4 mm

Brand: ATORN
Cutting edge diameter: 8 mm
Werkstückkante: 45 Grad
Chamfer angle: 90 Degree
Type: N
Number of cutting edges (Z): 5 PCS
Insert diameter min.: 0,9 mm
Surface: ULTRA
Shank diameter: 8 mm
Tool holding device: HB parallel shank
Cutting edge length (S): 5,0 mm
Length: 63 mm

ATORN-No.: 11201203

EAN no.: 4050293743128

Product Datasheet Datasheet cutting values
